A sheet metal brake clamps a flat sheet between hardened fingers and a bending beam, then uses a handle to press an overhang down to a set angle. That is the whole idea, and it is why a brake beats a pry bar every single time. If you are picking the best sheet metal brakes for home shops, you are really choosing between a few very different machines that all solve the same problem: making the same bend twice, identically, without ruining the panel.
I have spent a lot of time in garages watching people struggle with exactly this. The failure mode is consistent. Someone buys a light machine, loads 16 gauge steel into it, watches the frame flex and the bend line wander, then spends an evening wondering whether the tool was bad or the technique was. It was the tool. Gauge ratings on cheap machines are not marketing lies exactly, but they are tested at the limit, not at the limit every Tuesday in a cold garage.
So this guide covers ten brakes, from a 2-pound vise attachment to a 48-inch bench folder, with the honest gauge limits, the real footprint, and the type of work each one actually suits. I also included a buying guide that walks through brake type, width, fingers, setup, and the accessories that make your first project come out square. Everything here was checked against 2026 listings and the feedback buyers left behind.
Table of Contents
Top 3 Picks for Home Shop Sheet Metal Brakes
If you want the short answer, these three cover almost every home shop. The Malco is the one I recommend to most people. The KAKA vise brake is the highest rated in the group and costs almost nothing to add to a bench. The KASTFORCE folder is the best balance of width and gauge per dollar of shop space.
Malco MB48A Portable Mini Brake
- 22 gauge capacity
- Bends to 135 degrees
- Up to 4 ft wide sheet
- Made in the USA
KASTFORCE KF5002 28 Inch Folder
- 28 inch width
- 18 gauge steel capacity
- 0-135 degrees
- Steel frame
Quick Overview: All 10 Brakes Side by Side
Neither of the roundups I studied uses a real comparison table, which is why sorting this list was manual work. Here is everything in one place, with the specification that actually decides the purchase for each machine.
| Product | Specifications | Action |
|---|---|---|
| Malco MB48A Portable Mini Brake |
|
Check Latest Price |
 KAKA BDS-6 Vise Mount Brake |
|
Check Latest Price |
| KASTFORCE KF5002 28 Inch Folder |
|
Check Latest Price |
 VEVOR 48 Inch Box and Pan Brake |
|
Check Latest Price |
 KASTFORCE KF5007 Vise Mount Bender |
|
Check Latest Price |
 Shop Fox M1011 Box and Pan Brake |
|
Check Latest Price |
 KAKA FB-4 Manual Bending Brake |
|
Check Latest Price |
 KAKA 8 Inch 3-in-1 Shear Brake Roll |
|
Check Latest Price |
 VEVOR 12 Inch 3-in-1 Machine |
|
Check Latest Price |
 KASTFORCE KF5006 Box and Pan Brake |
|
Check Latest Price |

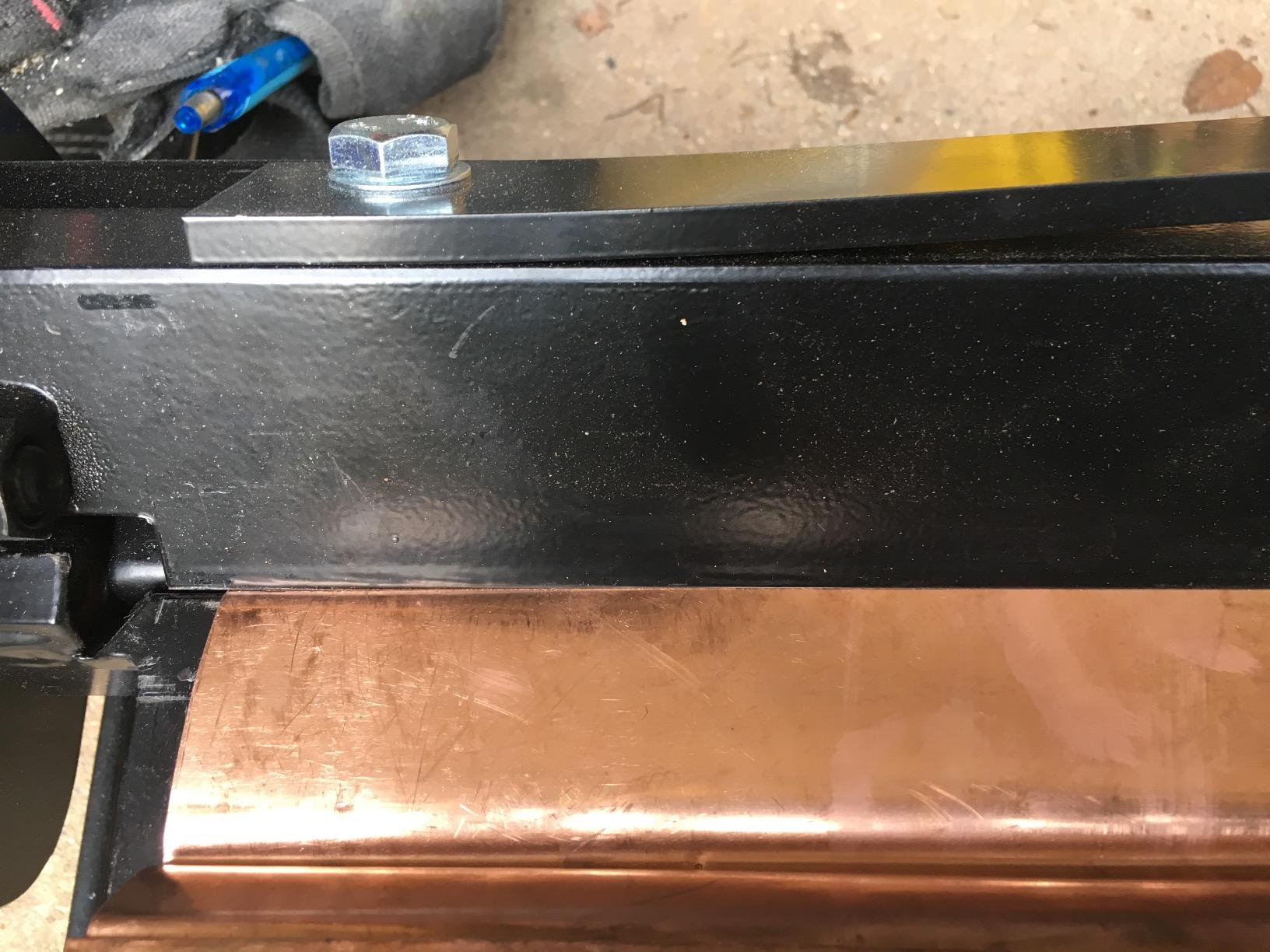

1. Malco MB48A Portable Mini Brake, 48 In, 22 Ga Capacity
Malco MB48A 48″ Portable Mini Brake, 22 Gauge Capacity, Sheet Metal Bender for HVAC, Roofing & Ductwork Fabrication
- Bends 22 gauge galvanized sheet to 135 degrees

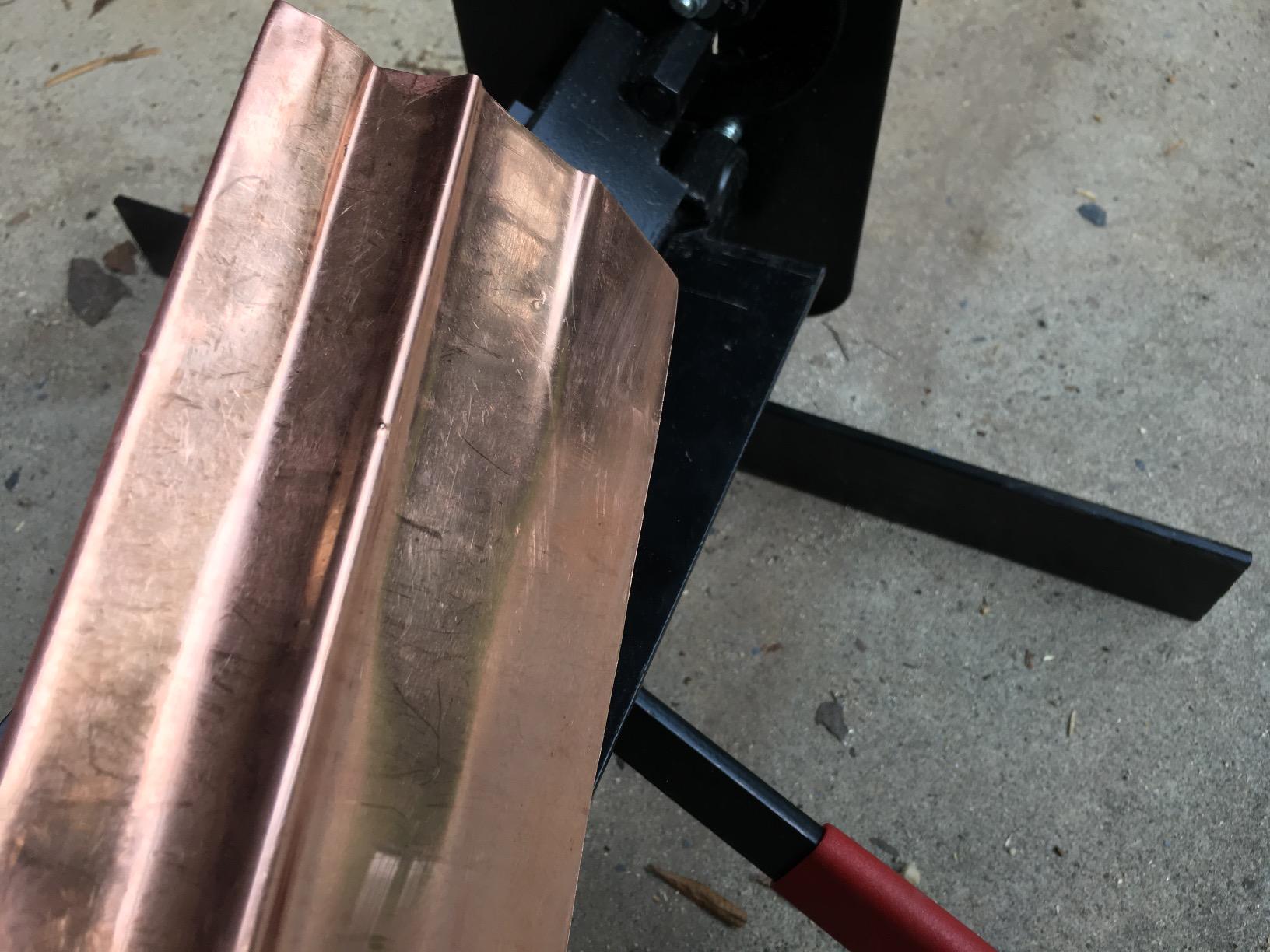

- Handles roofing components and flashing in copper and aluminum
- Forms fabrications as small as a 4 inch square
- Adjustable strengthening ribs
- Made in the USA
- Leg kit sold separately
- 58 pounds is heavy for a portable tool
This is the brake I keep coming back to, and the reason is simple: it is a specialty tool built by people who make roofing and HVAC accessories, not a general purpose import with a brake label stuck on the box. The 22 gauge galvanized capacity is the highest thin-gauge rating in this group, and 135 degrees means you can make a full hem, not just a 90 degree flange.
What stood out when I read the reviews is the range of jobs owners put through it. People are bending roof flashing, copper and aluminum roofing components, and duct plenums and transitions with it. The 4-foot sheet capacity and the ability to form pieces as small as a 4 inch square mean one machine covers both ends of the job list.
The adjustable strengthening ribs are the detail I would point at first. Most light-duty folders have a fixed frame that eventually goes soft, and once the frame is soft the bend line wanders on long pieces. Ribs that can be tightened as the frame settles keep the clamping edge straight, which is what you are actually paying for in a machine like this.
It is a portable design, but 58 pounds is the catch. That is a two-person lift, not a carry-it-to-the-roof job, despite what the name suggests. The optional leg kit is sold separately, so budget for that if you want it standing at a comfortable working height rather than on the floor.
Reviewers report that once you understand the finger spacing, repeatability is excellent for its class, and the 295 reviews at 4.4 stars with 72 percent five-star ratings reflect a tool that has been in production long enough to have a parts history.
Who the Malco MB48A Works Best For
If your projects are flashing, standing seam roofing accessories, coil stock trim, or duct transitions in thin galvanized sheet, this is the machine. The 22 gauge rating sits right in the range most home HVAC and roofing work needs, and the 135 degree swing handles hems and deep returns that cheaper folders stop short of.
It is also a good fit for anyone who bends a lot of copper and aluminum roofing components, since those materials work far better in a purpose-built frame than in a general folder.
Where the Malco Falls Short
It will not touch 18 or 16 gauge steel, and if your project list includes heavy-gauge HVAC or trailer bodywork, you need a different machine entirely. The 58 pound weight also means it is not really a job site tool despite the portable frame.
And the missing leg kit is a small annoyance that catches people out. Plan the bench height before it arrives, not after.

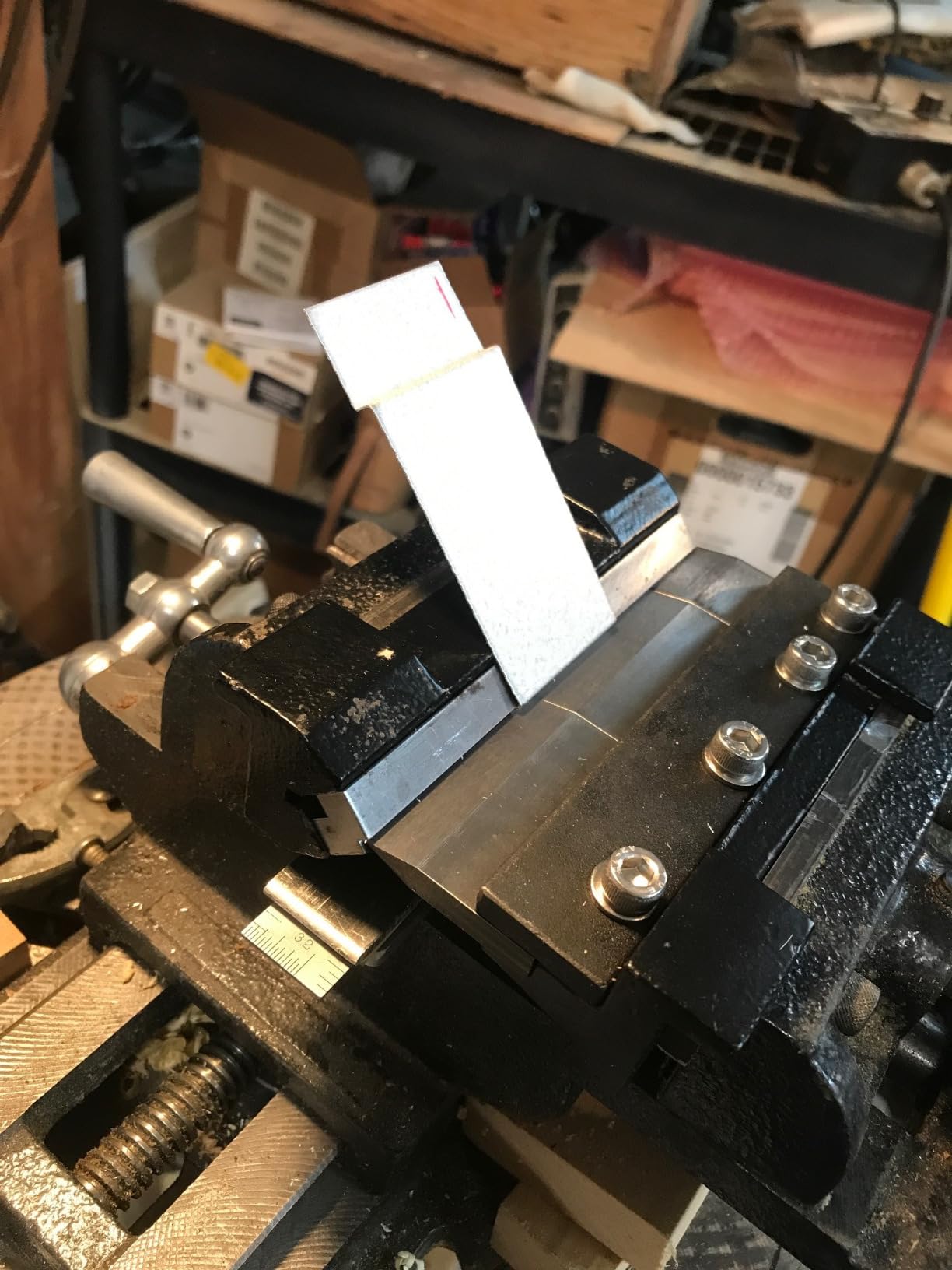

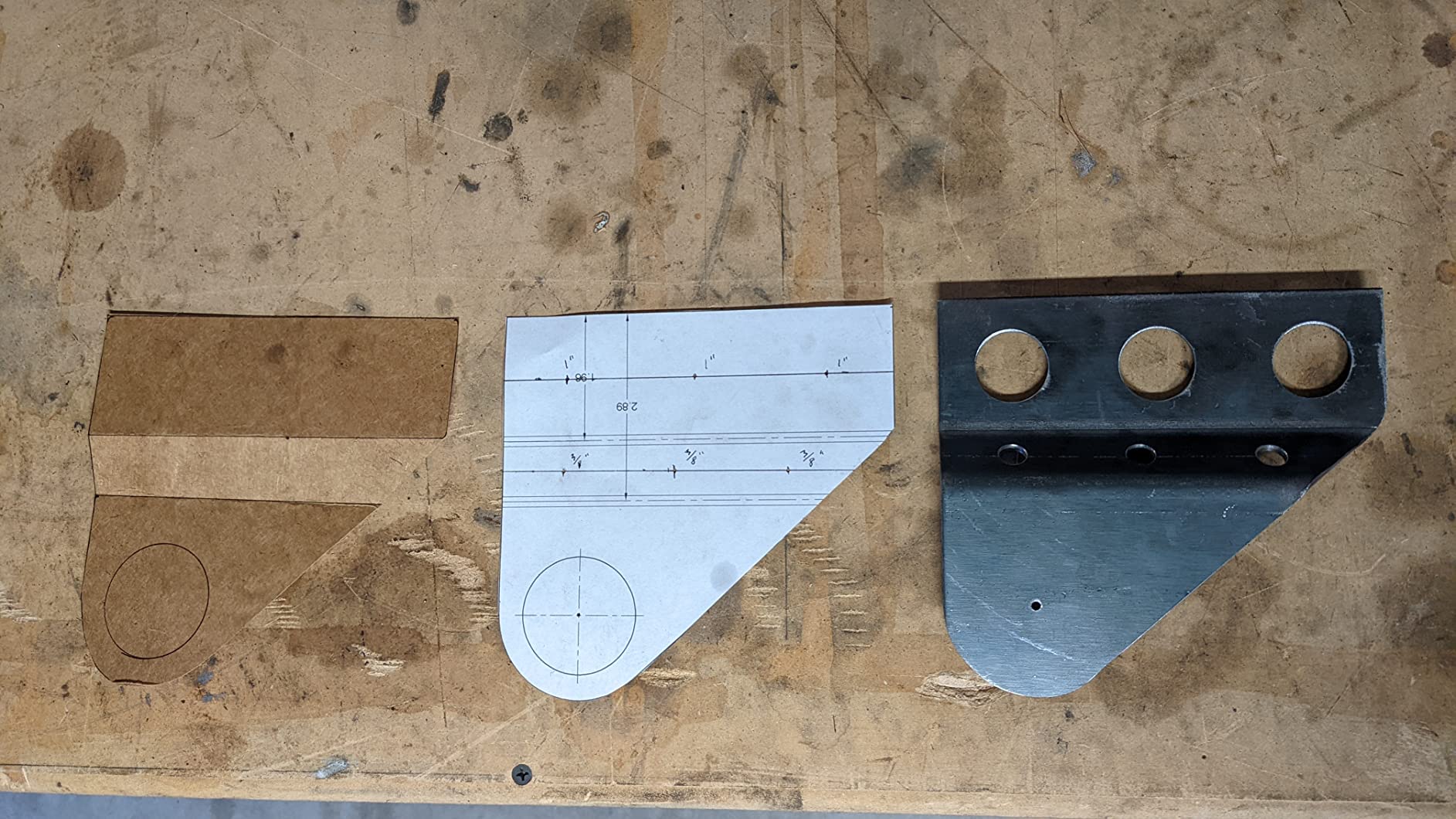

2. KAKA Industrial BDS-6 Vise Mount Metal Brake Bender, 6 Inch
- Turns a bench vise into a small brake
- 14 gauge mild steel capacity in a hand tool
- Removable section finger for small boxes
- Magnetic mount installs in seconds
- Only 302 g so it moves between benches
- Vise required and sold separately
- 6 inch width limits larger pieces
This is the highest rated product in the group at 4.6 stars across 312 reviews, with 77 percent of those ratings at five stars. That is a remarkable hit rate for a tool that is essentially a steel block with three fingers that bolts to a vise you already own.
The 14 gauge mild steel rating is genuinely useful for a hand tool. That covers small brackets, electrical boxes, control panel blanks, and the kind of small hardware that people end up hand-bending with a block of wood and a hammer. The removable section finger is what lets you form a real box instead of a simple L.
The magnetic mounting system is the design decision that makes this work in practice. You clamp it to a vise, bend a piece, slide it off, and put the vise back to clamping work. Nothing is drilled, nothing is bolted permanently, and at 302 grams it lives in a drawer rather than a footprint on the floor.
Reviewers consistently describe it as an inexpensive bench accessory rather than a real brake, and that framing is correct. Knowing that is what will keep you from being disappointed when it will not handle a 24 inch sheet of 18 gauge.
Who the KAKA BDS-6 Works Best For
This is for the garage that does not need a full brake. If your projects are small brackets, housings, patches, and hardware under about 6 inches wide in 14 gauge or lighter, it is genuinely enough. It is also the best starter tool I would put in front of someone who has never bent metal, because the learning curve is a few minutes rather than a few evenings.
Where the KAKA BDS-6 Falls Short
Six inches is the hard limit, and there is no way around it. It also needs a vise with jaws at least that wide, so if your bench vise is a small machinist vise you may need to look at the 4 inch version instead.
And do not expect production output. This is a one-at-a-time hand tool, fine for hobby quantities, wrong if you have 30 transitions to make by the weekend.

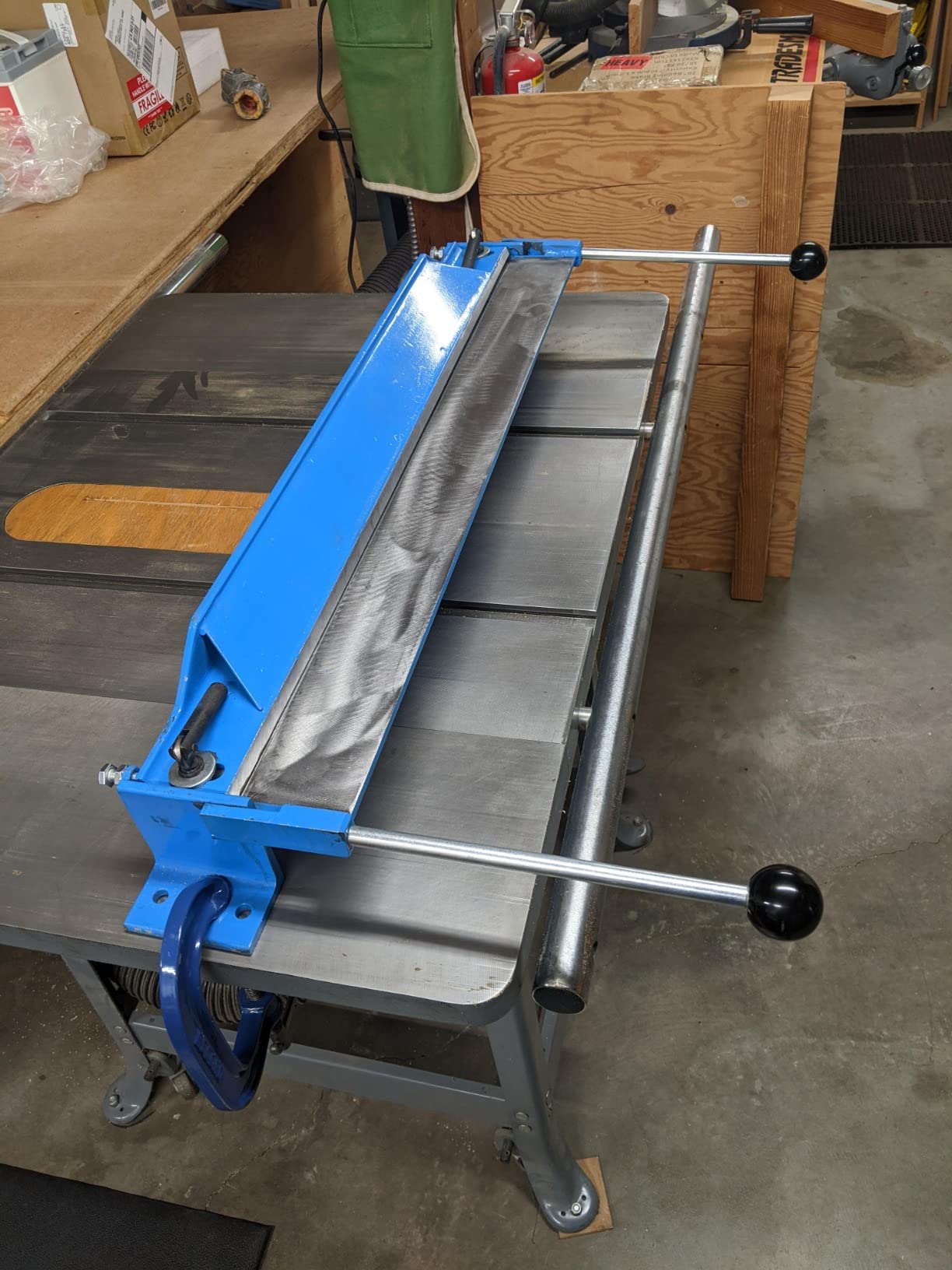

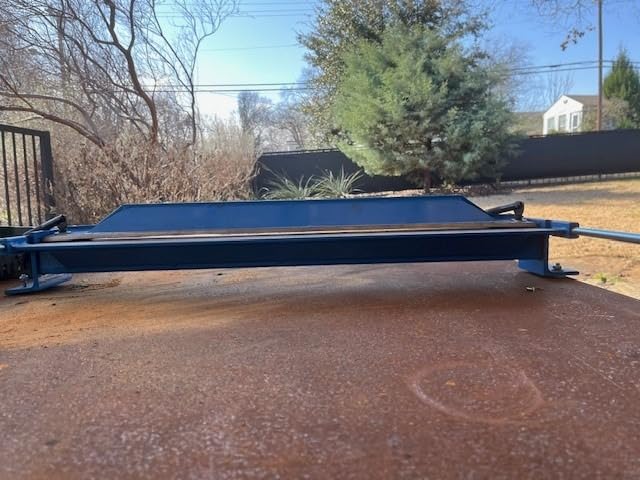

3. KASTFORCE KF5002 28 Inch Sheet Metal Folder, 18 Ga Capacity
- 28 inch width in a compact frame
- Handles 18 gauge mild steel and 16 gauge aluminum
- Adjustable 0-135 degree bending range
- Rugged heavy-duty steel frame
- Suitable for furnace ductwork
- shutters and auto body work
- Sheet must be inserted by hand with no clamping fingers
- 44 pound floor-standing frame takes bench space
Sheet metal bender capacity here is measured against 18 gauge mild steel and 16 gauge aluminum, which puts this machine in a different class from the 20 gauge folders further down the list. For a home shop that wants real ductwork or repair work, that difference is the whole decision.
Buyers point to the 28 inch width as the reason it works, because 28 inches is wide enough for a standard furnace duct transition and narrow enough to live with in a one-car garage. The adjustable 0-135 degree range covers everything from a 90 degree flange to a full hem.
One thing to understand before you buy: this is a folder, not a box and pan brake. There are no clamping fingers and no press plate, so you insert the sheet by hand and hold it against the bending edge. That is a real limitation when you want consistent repeatability, and it is why I would not build a production workflow around it.
The 44 pound steel frame is heavy and meant to sit in one place. In exchange you get a rigid frame that does not walk across the floor when you push a hard bend, which is more than several lighter competitors manage.
With 220 reviews at 4.5 stars and 71 percent five-star ratings, the feedback pattern is buyers citing capacity relative to what they paid, particularly for light-gauge shop and ductwork jobs.
Who the KASTFORCE KF5002 Works Best For
If you do furnace and duct repair work, cabinet repairs, shutter work, or light auto body patch panels, this is the machine. The 18 gauge steel rating gives you real working material rather than the 20 and 22 gauge ceiling most home folders hit, and 28 inches covers most of what a residential shop sees.
Where the KASTFORCE KF5002 Falls Short
Manual insertion means your hands are on the sheet while you pull, and that is where consistency suffers on long repeat runs. There are no removable fingers, so box and pan work is limited to simple bends.
At 44 pounds it is a floor-standing commitment rather than something you reposition, and it will not go wider than 28 inches, so full width flashing runs are out.
4. VEVOR 48 Inch Box and Pan Brake, 0-130 Degrees
VEVOR Box and Pan Brake, 48-Inch, 0-130 Degrees Sheet Metal Bending Brake
- 48 inch width in a compact machine
- 0.31 inch blade with reinforced rib design
- Integrated press plate replaces external clamps
- Bench-mount holes in Q235 steel
- Also made in 30 inch and 36 inch sizes
- Limited to 20 gauge low carbon steel
- 61.7 pounds is awkward for one person to lift
Width is the headline here. A 48 inch bending width means you can make full width flashing, standing seam roofing panels, and garage door skins in one pass, which almost nothing else on this list can do. The same model is also offered in 30 and 36 inch versions if your bench is shorter.
The integrated press plate is the feature I would highlight. Many competitors at this width require you to bolt on a separate clamp, and every extra part is another thing to align. Having the plate built in means the sheet gets held in one motion before you pull.
The 0.31 inch thick blade with reinforced rib design is a real upgrade over the thin stamped blades common in this price class, and it is the reason the frame holds its line on a full width bend. Q235 construction with bench mounting holes means you bolt it down and it stays put.
Be clear-eyed about the 20 gauge low carbon steel limit. That rating is at the top of what this frame does well, and reviewers report mixed long-term durability when it gets pushed to that ceiling repeatedly. Treat it as a 20 gauge machine and it behaves like one.
At 277 reviews and 4.2 stars, with 66 percent five-star ratings, this is a well-reviewed machine sitting in a middle band of owner satisfaction, which is typical for the width-first category.
Who the VEVOR 48 Inch Works Best For
Roofing installers and anyone doing metal roofing, wide flashing, or trailer skin work will get the most out of it. Two handles give you the leverage to pull a full width bend without a cheater bar, which is the common complaint on narrower single-handle machines.
Where the VEVOR 48 Inch Falls Short
Twenty gauge is the ceiling, so forget 18 gauge duct transitions and 16 gauge aluminum work. The 61.7 pound weight is also genuinely awkward for one person, so plan the install as a two-person job or wait for help.
It is a big machine in a small shop. Measure your bench before you commit.

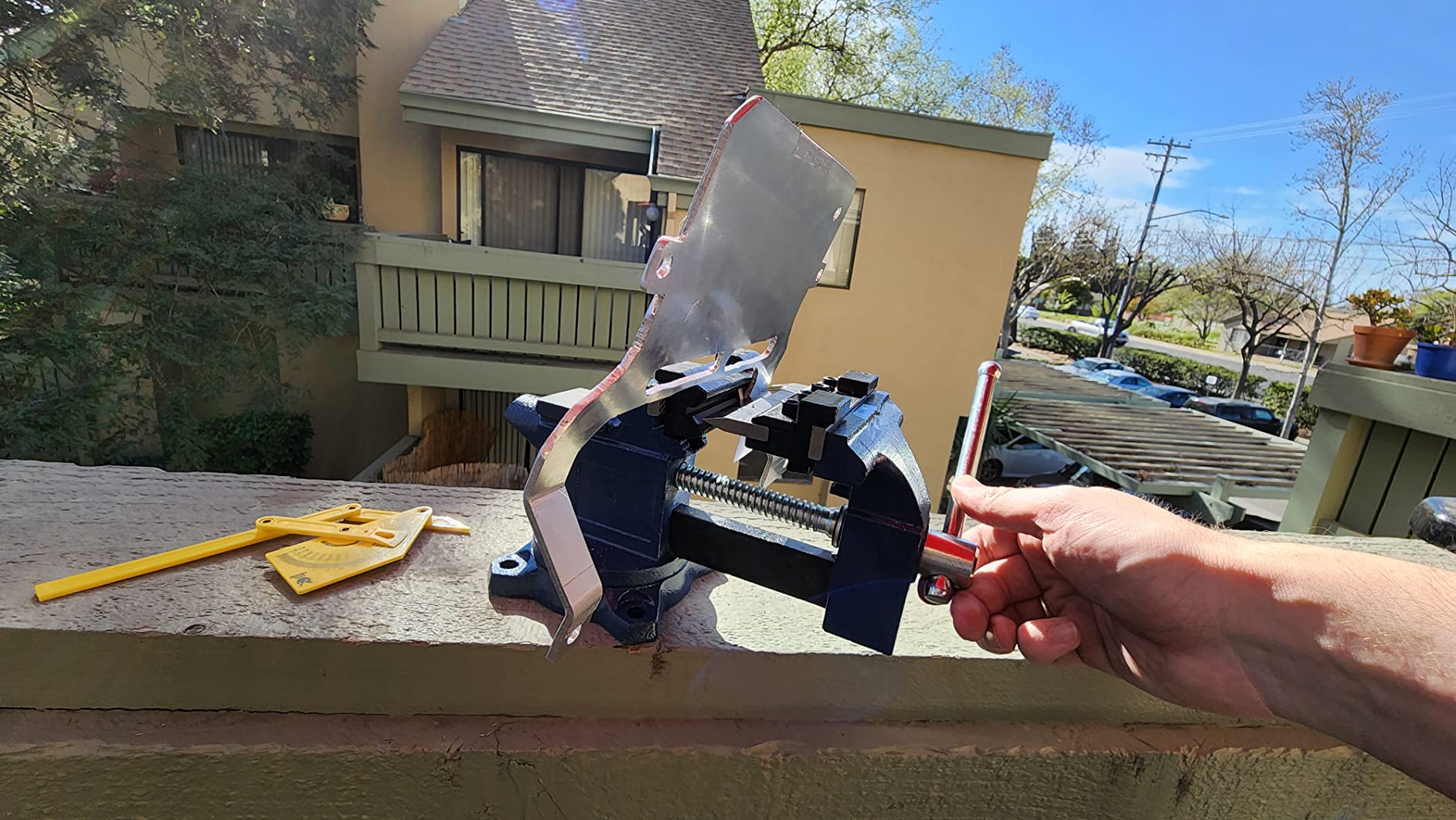

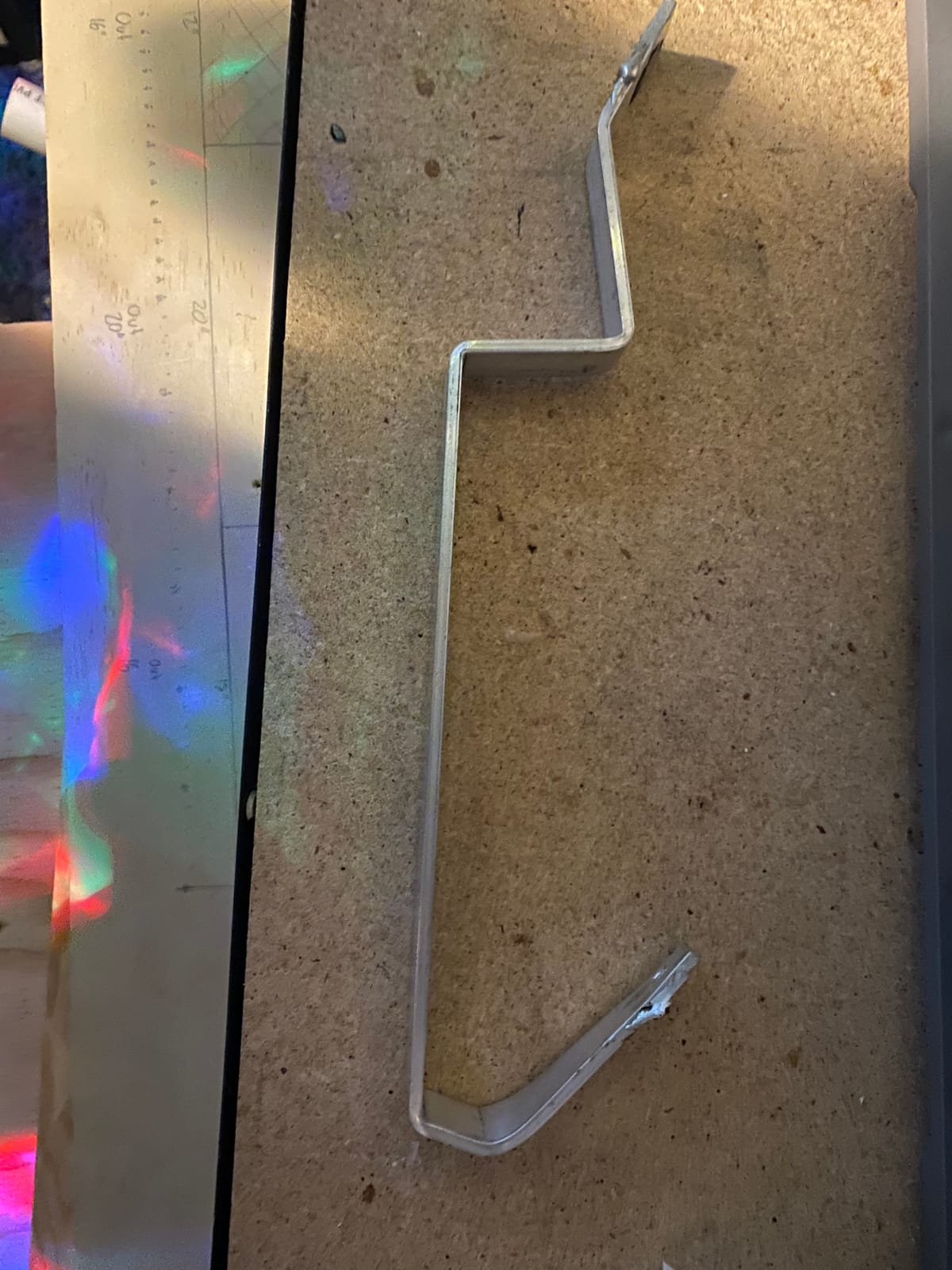

5. KASTFORCE KF5007 4 Inch Vise Mount Brake Attachment
- Three dies and a mount in 2.05 pounds
- Handles 14 gauge mild steel and 1/8 inch aluminum
- Three removable hardened dies in 1 inch
- 1 inch and 2 inch
- Magnetic mount swaps in and out fast
- Vise not included
- 4 inch width suits small boxes and trim only
This is the smallest useful bending tool in the group and the easiest recommendation for a first purchase. At 4 inches wide and 2.05 pounds, it takes up less drawer space than a set of hex keys, and it handles 14 gauge mild steel plus 1/8 inch aluminum.
The three removable hardened finger dies, in 1 inch, 1 inch, and 2 inch sizes, are what make it more than an angle bracket. Change the finger and you change the box size, which is the whole point of a segmented brake in miniature.
Mounting is magnetic, so it clamps to a 4 inch or wider vise and comes straight off when you need the vise for something else. Owners describe satisfaction centered on exactly that portability and on having die variety at hand for hobby-scale work.
The alloy steel construction and the 2 pound weight mean you can carry the whole thing to a workbench in the garage, a rented shop, or a friend’s place for a single afternoon of bending.
With 206 reviews at 4.4 stars and 66 percent five-star ratings, the pattern is consistent: people like what it does for the size of the thing, and they stop pushing past that size.
Who the KASTFORCE KF5007 Works Best For
Coin collectors, model builders, electronics hobbyists, and anyone making small boxes, covers, or trim in light material. It is also a genuinely useful second tool for a shop that already owns a large brake but needs to make small pieces without re-setup.
If you have never bent metal before, this is the least intimidating way to find out whether you enjoy it.
Where the KASTFORCE KF5007 Falls Short
Four inches is small. Anything longer than a single flashing tab or a junction box is out of range, and the 14 gauge limit rules out heavier steel work entirely.
The vise is not included, so count that as a separate purchase and check your jaw width. There is no way to make it bend more; the capacity is what it is.

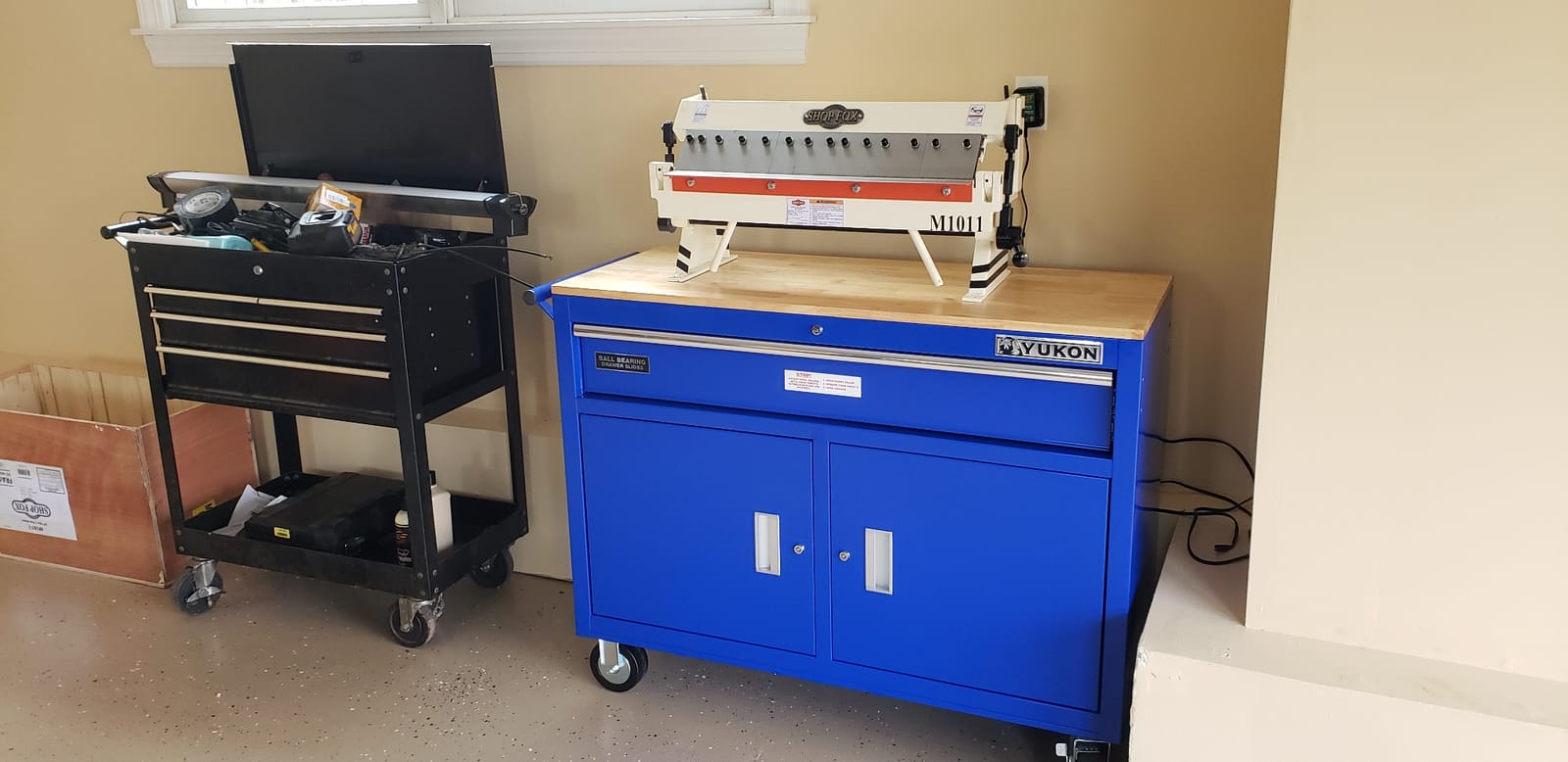

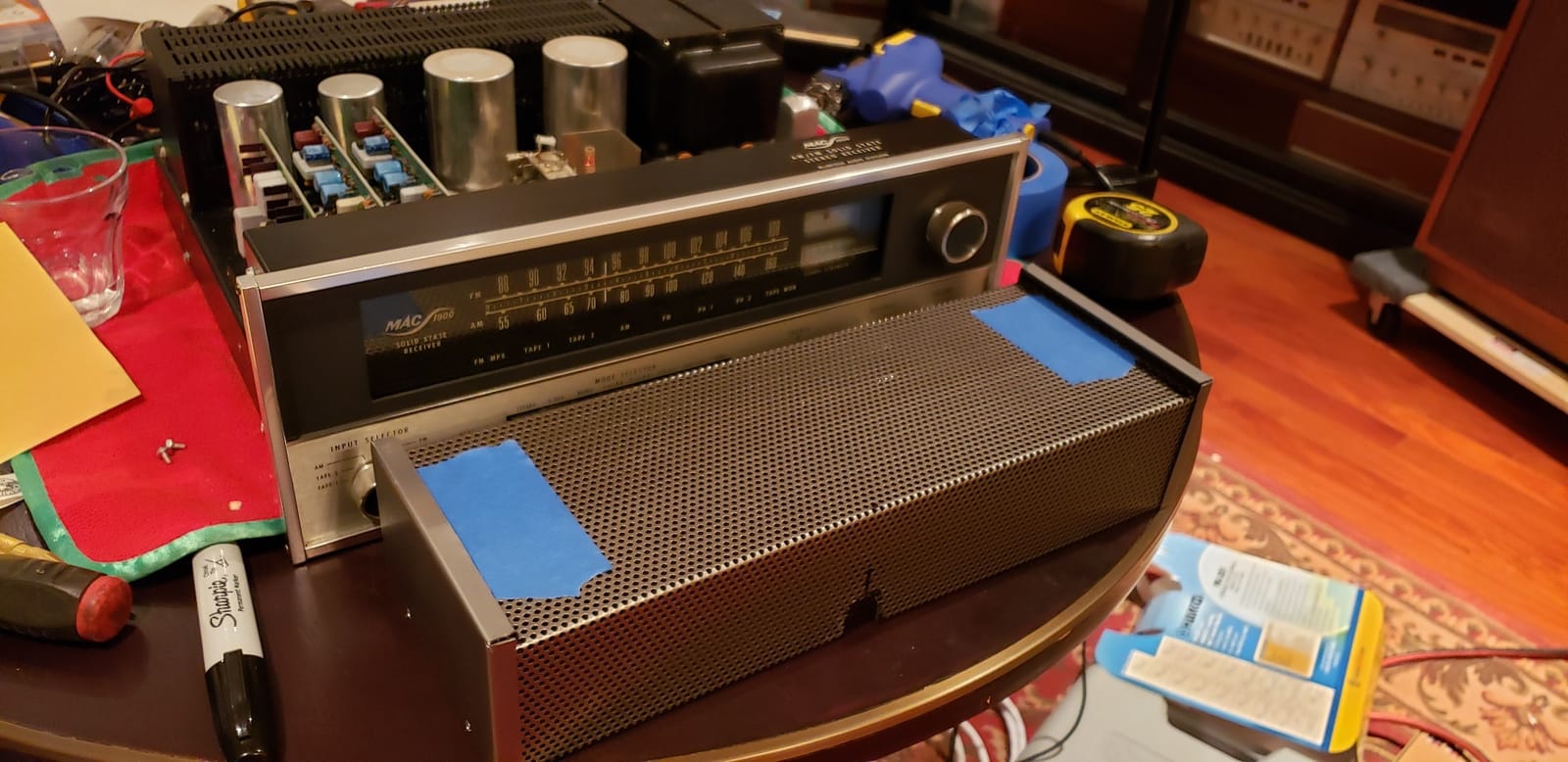

6. Shop Fox M1011 24 Inch Box and Pan Brake
- Ten box fingers give far more size combinations
- Ground platens and fingers make repeatable bends
- Strong locking mechanism with reasonable hand force
- Sturdy crate protects the machine in transit
- Good build quality in its class
- About 99 pounds and must be bolted down
- No bend angle gauge included
- No roller bearings or adjustable back stops
This is the one I would buy if the word box is the point. Ten box fingers, in 1, 2, 3, and 4 inch sizes, give you a range of box and pan dimensions that a typical five-finger import brake cannot reach without owning extra tooling.
Owners repeatedly single out the ground platens and fingers as the reason bends come out crisp and repeatable, with no oil canning in the panel afterwards. A strong, accurate locking mechanism holds the sheet so the bend line stays where you put it, which is the difference between a box and an expensive piece of scrap.
The brake angle range is 0-135 degrees and maximum box depth is 1-3/4 inches, so it covers standard duct transitions, plenum sides, and most small enclosures. It is factory adjusted for 20 gauge mild steel across a 24 inch width.
It is heavy at roughly 99 to 110 pounds and should be bolted to a bench, which is a feature if you want it to stay put. The plywood-free wooden crate with forklift skids is also worth noting, because heavy machines arriving damaged is a common and avoidable problem.
Reviewers mention occasional transit damage on arrival, so photograph the machine before you accept the delivery. That advice comes up repeatedly across heavy equipment and it costs nothing.
Who the Shop Fox M1011 Works Best For
Home fabricators building boxes, pans, duct transitions, and small enclosures on a regular basis. If you are making more than a handful of pieces a month, the finger count and repeatable accuracy will save you more time than the purchase difference does.
It is also the right pick for anyone who has been disappointed by a five-finger brake and needs the extra finger sizes.
Where the Shop Fox M1011 Falls Short
There is no built-in bend angle gauge, so 90 degree bends need a separate speed square or protractor. Reviewers also note that wider stock sometimes needs to be clamped down harder to prevent movement during the pull.
And it is not an industrial machine. It has no roller bearings and no adjustable back stops, which is the trade you make for a price that still makes sense in a garage.

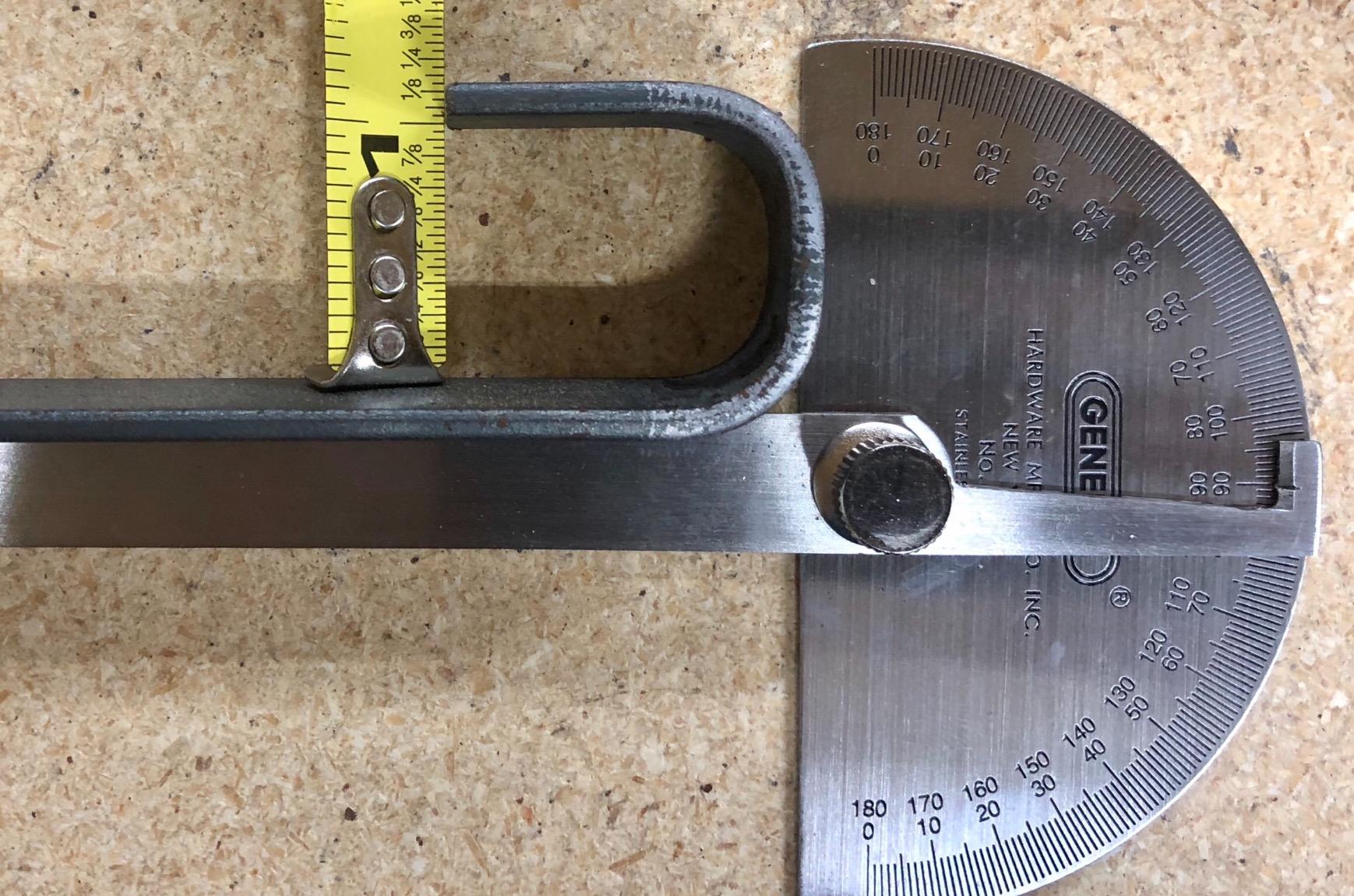

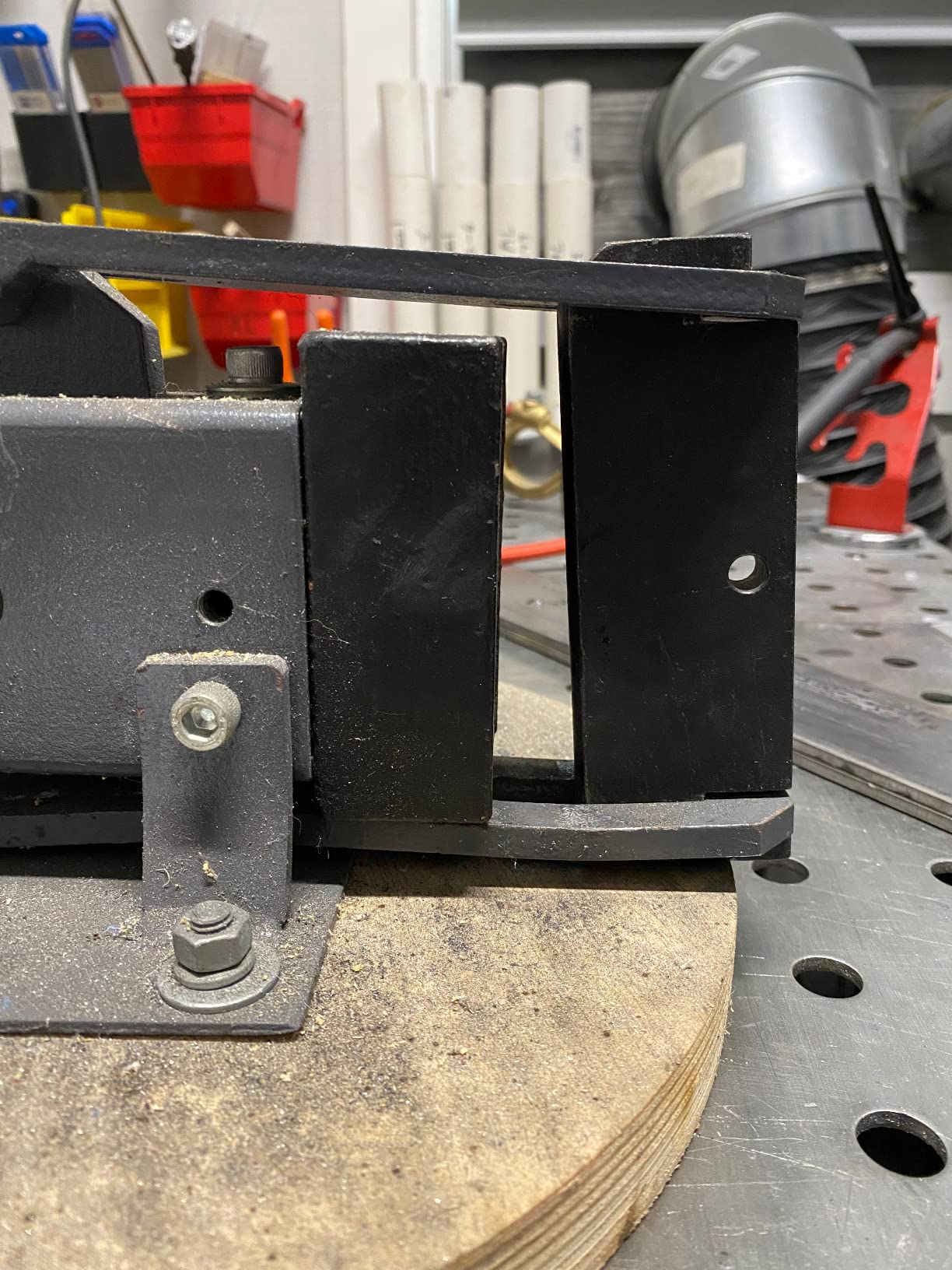

7. KAKA Industrial FB-4 Manual Steel Bending Brake, 4 Inch Capacity
Manual Steel Bending Brake, 4 in Capacity KAKA INDUSTRIAL FB-4
- Compact 19 pound bench-mount design
- Bends 3/16 inch mild steel at full 4 inch width
- Bends aluminum up to 3/8 inch
- Solid steel frame for long service life
- Rounded die edge gives a coarse bend radius
- Blade-to-frame gap is not adjustable
- Top strap can arrive installed upside down
This one is different enough to deserve its own section. It is not a sheet metal brake for forming panels; it is a press with 2.5 tons of force that bends 3/16 inch mild steel at the full 4 inch width and aluminum up to 3/8 inch. That is thick material, and nothing else in this guide handles stock like it.
For repairs, that is the point. Bent angle iron, damaged brackets, and rebar-adjacent hardware are the kinds of jobs where a sheet brake simply cannot help, and where a 19 pound bench press that bolts to a bench can.
Now the honest part. The rounded male die edge produces a bend radius of roughly 3/8 inch, not a sharp press brake bend. If you need a tight radius for a bracket that has to nest inside another part, this is the wrong tool and you already know it from the shape of the machine.
The gap between the blade and the frame is also not adjustable, and reviewers report that an uneven gap can skew bends. The top strap has a habit of arriving installed upside down, which binds until you flip it, so allow yourself twenty minutes of setup before the first bend.
With 103 reviews at 4.1 stars and a 15 percent three-star share, the split is mostly about the bend radius and the setup quirks, not about build quality. People like the capacity relative to what they paid.
Who the FB-4 Works Best For
Anyone doing repairs on heavy flat bar, angle, and strap, or working ornamental iron and thicker aluminum. It is a companion tool to a sheet brake rather than a replacement for one, and it pairs well with a 20 gauge folder for mixed shops.
Where the FB-4 Falls Short
It cannot make multiple bends close together without added hold-down help, and the fixed blade gap limits consistency across a long run. The coarse radius rules out fine sheet metal work entirely.
If your work is 18 gauge and lighter, buy a brake instead. This is the wrong end of the toolchain for you.

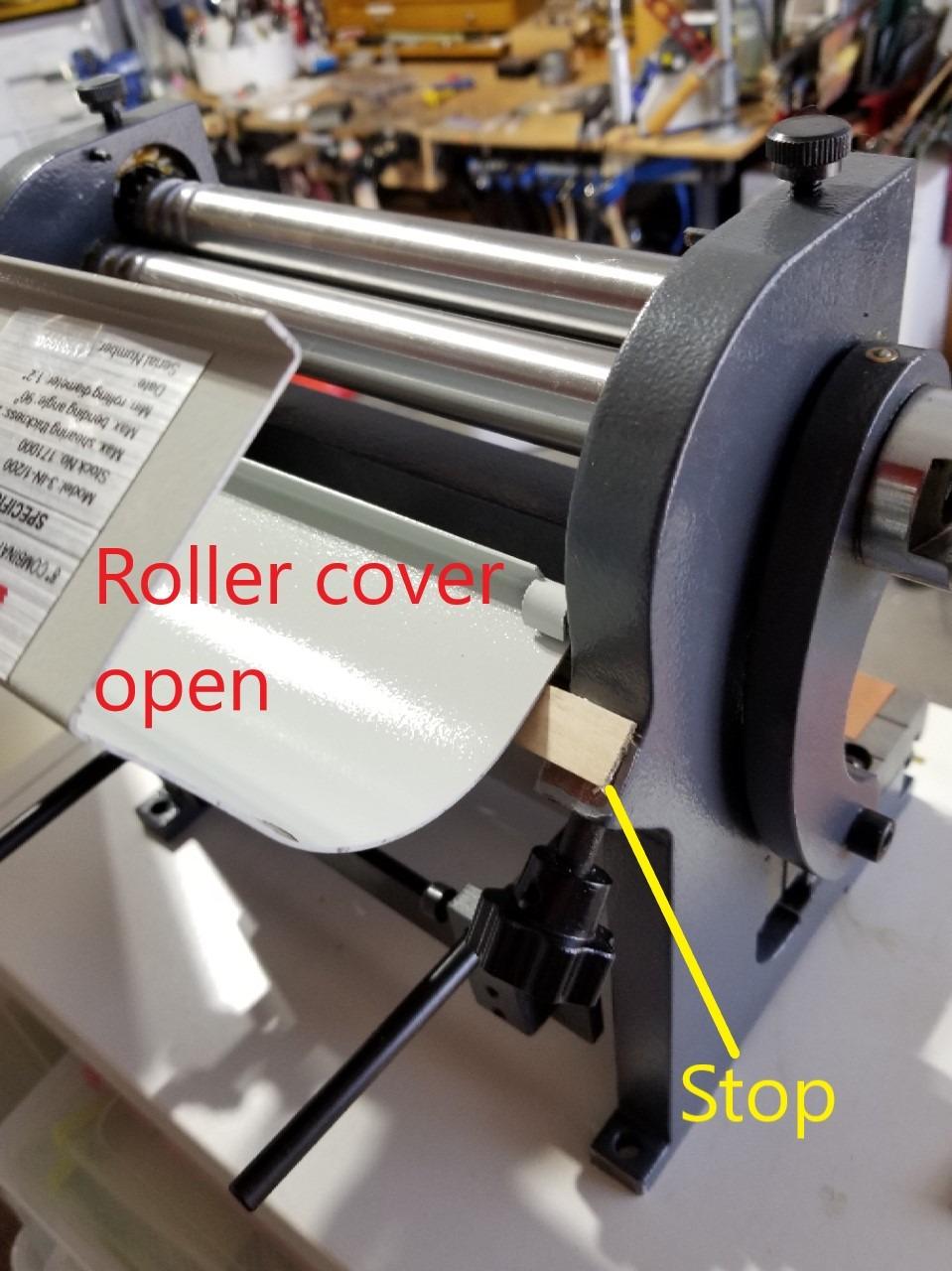

8. KAKA Industrial 8 Inch 3-in-1 Shear, Brake and Roll Machine
- Shear
- brake and roll in one compact machine
- HT200 cast iron frame resists flex during bending
- Removable dies allow custom bend angle setups
- Compact footprint suits space-constrained shops
- Needs calibration and setup before it works well
- Intended for skilled users and front mounting holes need extensions
- 8 inch working width is the smallest here
Three functions in one machine is a genuinely appealing proposition in a small shop. Shear, brake, and roll occupy the same 11 by 9 inch footprint, and the HT200 cast iron frame is a step up in rigidity from the stamped steel on most multi-function machines at this size.
It shears 20 gauge mild steel, bends 90 degree boxes and pans with segmented dies, and rolls 1.14 inch diameter cones. The T10 shear blades and 45# steel rollers are sensible material choices, and dual position handles help when you are working a long session.
The removable male and female dies mean you can set up different bend angles rather than living with one. Pre-drilled shimming points and squared guide rails are provided for calibration, with a recommended blade gap of .006 inch.
That calibration requirement is the honest catch. This is not a machine you unbox and use in five minutes. Owners describe it as a calibration-driven tool for skilled users, and the front mounting holes need extensions before it will fasten down properly on many benches.
At 44 reviews and 4.4 stars with 68 percent five-star ratings, the sample is small, so treat the feedback as directional rather than conclusive.
Who the 8 Inch 3-in-1 Works Best For
A hobbyist who works in copper, brass, and light aluminum and wants to cut, bend, and roll without three separate machines. Coin hobbyists and small enclosure builders fit this description well, and anyone with genuinely limited bench space will appreciate the footprint.
Where the 8 Inch 3-in-1 Falls Short
Eight inches is the narrowest working width in this roundup, so full width flashing and roofing accessories are out of range. The calibration requirement means a first project will take longer than you expect.
And it is a skilled-user machine. Buy it if you enjoy setting tools up. Borrow one if you just want to bend a box.

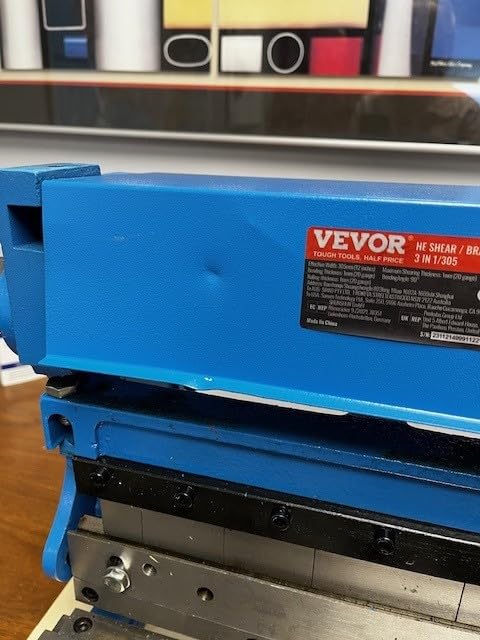

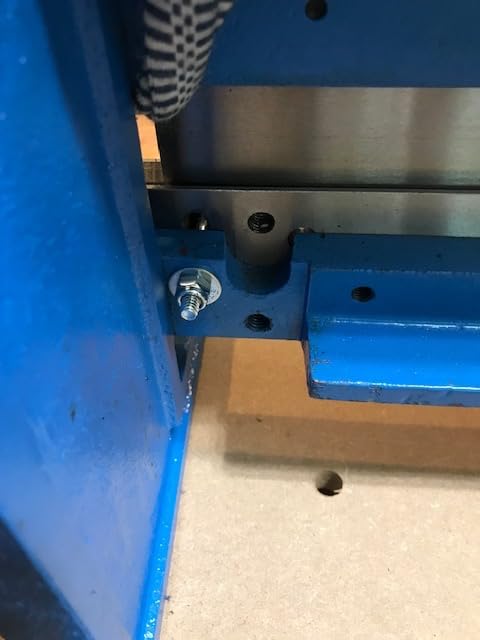

9. VEVOR 12 Inch 3-in-1 Shear, Brake and Roll Machine
- Three functions in one bench-sized machine
- Segmented blades allow custom box sizes
- Cylindrical grinding reduces scratching
- Handles aluminum
- brass copper lead
- plastic and zinc
- 20 gauge rating is optimistic for low carbon steel
- Shear blade and adjustment knobs can arrive bent
- Cast finish is serviceable rather than refined
- 90 pound weight for a benchtop unit
At 12 inches this is the wider and heavier of the two 3-in-1 machines here, with a 12 inch max width and 20 gauge, 1mm maximum thickness. Five segmented bending blades at 1 inch, two 2 inch, 3 inch, and 4 inch give decent box size coverage for the footprint.
Where it genuinely earns its place is aluminum. The material list covers low carbon steel, aluminum, brass, copper, lead, plastic, and zinc, and the externally cylindrical ground rollers are described as reducing friction and surface scratching, which matters when you do not want to mark finished aluminum trim.
The blade clearance specification of under 0.0027 inch is tight, and that is what lets a light-gauge machine shear cleanly. The HT200 casting with a T10 shear blade and 45# bending blade and rollers is a solid platform when it is set up right.
Now the complaints, and they are consistent. Reviewers report that the 20 gauge rating is optimistic for low carbon steel, with cutting and rolling that is hard work and a cutter needing frequent adjustment. The shear blade and adjustment knobs can arrive bent, requiring repair and modification before first use.
This is the lowest rated product in the roundup at 3.9 stars across 58 reviews, with 18 percent three-star and 7 percent one-star. The gap between the stated rating and the real-world performance on steel is the reason.
Who the VEVOR 12 Inch 3-in-1 Works Best For
People working primarily in aluminum, brass, copper, or thin plastics who want cutting, bending, and rolling in one bench-sized unit. If your material is non-ferrous, the low rating on steel matters much less.
Where the VEVOR 12 Inch Falls Short
Do not buy it for low carbon steel work at its stated limit, and inspect the shear blade and knobs the day it arrives. At 90 pounds it is heavy for something described as benchtop, so check your bench load and your lifting plan.
The cast finish is serviceable, not refined, so if appearance of the tool itself matters to you, keep looking.

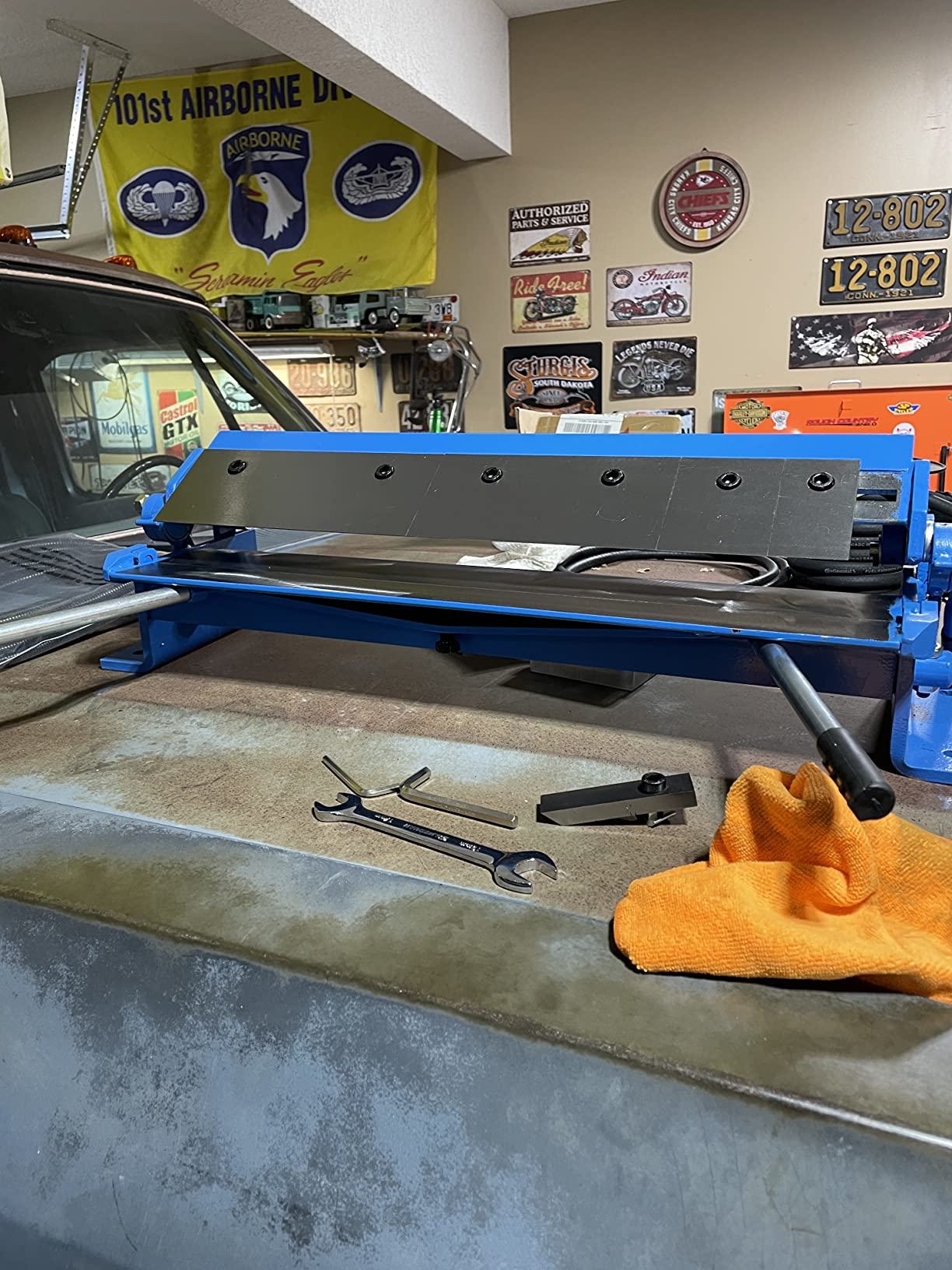

10. KASTFORCE KF5006 24 Inch Box and Pan Brake, 20 Ga
KASTFORCE KF5006 Box and Pan Brake Sheet Metal Folder Bending Brake Metal Forming Machine Max Capacity 24 Inch (610mm) 20 Ga (1.0mm) with 5 Fingers 0-135 deg
- 24 inch width at 20 gauge capacity
- Five finger sizes cover most box and pan work
- 0-135 degree range handles seams and transitions
- Solid steel construction for workshop use
- 68 pounds and stationary
- Maximum box depth of 1.5 inch limits deeper fabrications
This is a straightforward 24 inch box and pan folder rated at 20 gauge mild steel with a 0-135 degree range, and it does the basics without pretending to be something else. Five finger sizes at 1, 2, 3, 8, and 10 inches cover most box and pan work, which is the same language the five-finger import class uses and the same practical coverage.
Rating is 4.6 stars across 45 reviews with no one-star ratings reported, which is encouraging, but the sample is small enough that I would treat it as a signal rather than a track record.

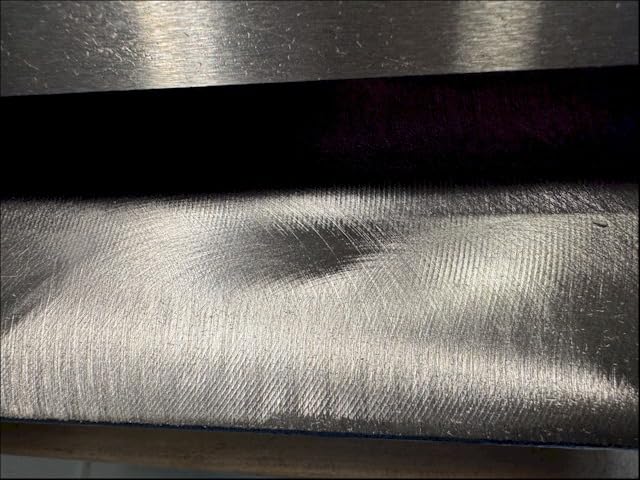

Maximum box depth is 1.5 inches, and that is the specification most likely to disappoint you. Deeper pans and plenum sides will not form on this machine no matter how good the bend looks, so check your intended depth before ordering.
At 68 pounds it is a stationary machine. Plan a permanent bench position and bolt it down rather than planning to move it, because a brake that shifts during a pull is a brake that produces inconsistent lines.
Owners cite solid capacity and finger coverage for what they paid, with limited feedback volume overall. The steel construction is described as workshop grade, which matches how it feels in use.
Who the KF5006 Works Best For
A home shop doing 20 gauge work in standard widths, where the priority is a 24 inch box and pan machine that fits a normal bench. It suits duct transitions, small pans, and general repair fabrication rather than heavy production.
Where the KF5006 Falls Short
The 1.5 inch box depth is the real limit, and 68 pounds is a commitment. If you need deeper fabrications or lighter material with more width, one of the other 24 inch options covers more ground.
With only 45 reviews, there is less long-term owner history to lean on, so expect to do your own alignment work up front.
How to Choose a Sheet Metal Brake for a Home Shop
Most brake purchases go wrong because people buy a gauge rating instead of a tool type. These two decisions matter far more than the brand name, and if you get them right, the machine almost picks itself.
Box and Pan, Finger, Leaf, Press, or Siding Brake?
A box and pan brake has removable fingers along the clamping edge, so you set the finger spacing to the size of the box you want and the sheet is held in place by a clamp or press plate. This is the machine for duct transitions, pans, plenums, and enclosures, and it is the default choice for most home shops.
A finger brake is similar but generally lighter and narrower, aimed at smaller sheet and lighter gauge work. A leaf brake is a larger, older style machine that stores its material inside the frame and carries a heavier price tag, usually aimed at professional fabrication rather than a garage. A press brake applies force through a ram and die and gives sharper bends with tighter radii, at the cost of a much larger and far more expensive machine that needs its own room. A siding brake is a specialty tool for siding, soffit, and fascia trim work, often working coil stock with a hemming attachment rather than flat panels.
For a home shop, the honest answer is that a box and pan brake covers more ground than anything else, and a siding brake is only worth buying if roofing trim is a significant part of your work. A press brake is almost never the right purchase for a one-car garage, regardless of how good the idea sounds.
What Gauge Can You Really Bend?
Published gauge ratings are tested at the limit. You are not testing at the limit, and neither is a cold garage in the middle of winter. The gap between the two is where frames bend, metal tears, and operators hurt their backs.
Aluminum and mild steel do not share a rating even when the number matches. Several machines here are rated 20 gauge mild steel and 14 gauge aluminum, and that is not a typo; aluminum gives up earlier than steel at the same thickness. Galvanized and stainless spring back more than plain mild steel, so plan to overbend slightly and work a practice piece first.
The common forum failure is loading 16 gauge steel into a 20 gauge machine. The result is chatter, hand strain, and eventually a frame that no longer holds alignment. If your project list keeps calling for 16 or 18 gauge, buy the machine rated for it and save yourself the frustration.
Sheet metal comes in a range of thicknesses, and the strongest common sheet is mild steel, with stainless and heavier alloys above it. For most home work, 20 to 22 gauge is the practical ceiling of a light brake and 16 to 18 gauge is where a mid-range machine earns its keep.
Width, Footprint, and the One-Car Garage Problem
Bending width is the number that decides what you can make. A 24 inch brake covers most duct transitions and small enclosures. A 48 inch brake covers full width roofing panels and flashing, and it needs a bench to match.
Forum discussions about 48 inch machines in a one-car garage rarely complain about the machine and almost always complain about the space. The Shop Fox M1011 has a footprint of 10-1/2 by 26-1/4 inches and weighs about 99 pounds, so it needs a dedicated bench bolted down. The VEVOR 48 inch model is 54.7 by 17.7 by 6.1 inches at 61.7 pounds, which is a long, heavy install. The Malco at 52 by 12 by 10 inches is the most portable of the large machines, though 58 pounds still means two hands.
Measure your bench length plus working clearance before you buy. A brake you cannot get a full sheet onto is a brake you will not use.
Fingers, Box Depth, and Bend Allowance
Finger count is the quiet differentiator in this category. The Shop Fox M1011 ships with ten box fingers in 1, 2, 3, and 4 inch sizes, and owners consistently single that out. The five-finger machines, including the KF5006 and the VEVOR 48 inch, give you fewer combinations and more re-setup time between different box sizes.
Box depth is the limit nobody checks before buying. The M1011 reaches 1-3/4 inches, the KF5006 stops at 1.5 inches, and a vise attachment in this roundup will not make a deep pan at all. Know the depth of your deepest project before you order.
And do not skip bend allowance. The reason a finished part does not match your drawing is almost never the brake; it is the flat pattern. Measure your outside dimensions, subtract the flange height, subtract twice the bend radius, and add the bend allowance for your material and thickness before you cut anything. A speed square and a good set of calipers will save you more panels than any brake upgrade.
First-Use Setup Checklist
Almost every complaint I read about new brakes comes down to setup, not quality. Run through this before your first bend and most of it disappears.
First, bolt the machine down. A brake that slides during a pull will never give you a straight line. Second, check the finger or blade gap with a speed square or feeler gauge, and adjust until the gap is even along the whole edge. Third, verify the clamp or press plate holds the sheet without shifting, especially on wider stock. Fourth, do a test bend on a scrap piece and measure the angle with a protractor before you cut a real panel.
Fifth, if the machine arrived by freight, inspect it fully and photograph any damage before accepting the delivery. Missing hardware and bent blades show up on heavy machines often enough that it is worth the five minutes. Sixth, set aside a few small accessories before your first real project: gauge blocks or a protractor, a punch, a chip, and a deburring file. A brake makes a clean outside edge and a slightly sharp inside edge, and the file is what keeps the assembly comfortable to handle.
Accessories, Maintenance, and the Used Market
None of these machines includes an angle gauge, so budget for a protractor or magnetic angle finder. Deburring files and a good chip cost little and get used every single session.
On maintenance, the routine is short. Wipe off metal dust weekly, it is abrasive and it will wear the platens. Keep a light film of oil on the pivot and hinge points, and check the finger bolts every few months, especially on a machine you use hard. If the machine is steel and sits in a damp garage, treat bare surfaces and touch up chips in the coating, because rust under a finger is a bent finger waiting to happen.
The used market is worth a look, and it came up repeatedly when I researched this topic. People consistently ask for a decent used brake, usually with the same condition: top of the line not necessary, cheap not acceptable. Check the frame for cracks around the pivots, look for fingers that have been welded or cut down, and ask whether it has been re-platened. Add the cost of a full alignment and a fresh set of fingers to any used price before you decide it was the better deal.
One last note on small aluminum trim work. If you occasionally need to bend a piece of coil or trim and are not ready for a machine, a hand bender or a vise-mounted attachment is a reasonable stopgap. Clamp the material, work it incrementally rather than forcing one hard bend, and expect a radius you cannot get on a brake. It is a stopgap, not a replacement.
Frequently Asked Questions
What is the best metal brake?
For most home shops, the best metal brake is a box and pan brake with a 24 inch bending width and a 20 gauge mild steel rating, with removable fingers and a built-in clamp. That combination covers duct transitions, pans, and small enclosures in a normal garage. Step up to 18 gauge capacity only when your projects demand heavier material, and go wider than 24 inches only when you build full-width roofing panels or flashing.
How much does a sheet metal brake cost?
Cost tracks tool type more than brand. Vise-mount attachments are the cheapest way to add bending capacity and are sized for small parts and light gauge material. Bench-mounted folders and box and pan brakes form the middle of the range, typically rated from 20 to 22 gauge mild steel in widths from 24 to 48 inches. Professional press brakes and siding brakes sit at the top of the range and are built for production work. Check the latest price buttons on each product here for current figures.
What is a good hand bender for sheet metal?
A vise-mount brake attachment is the best hand bender for most home shops because it clamps to a bench vise you already own and adds removable fingers for small box work. Look for a magnetic mount so you can remove it in seconds, at least 14 gauge mild steel capacity, and finger dies in a couple of sizes. A dedicated hand bender is fine for occasional aluminum trim, but it gives a wider bend radius than a machine brake.
Can you bend 16 gauge steel with a 20 gauge brake?
You can try, but you should not plan on it. A 20 gauge rated brake is at its tested limit with 20 gauge material, and 16 gauge steel is substantially thicker and stronger. Overloading it causes chatter, wandering bend lines, hand strain, and permanent frame flex. If 16 gauge work is part of your project list, choose a machine rated for 16 or 18 gauge mild steel from the start.
What are common mistakes when bending sheet metal?
The most common mistakes are skipping the flat pattern and bend allowance, failing to bolt the machine down, bending at full width without checking the finger or blade gap, and pushing material past the machine gauge rating. Others include not clamping wide stock securely, measuring angles by eye with no protractor, and leaving sharp inside edges unfiled. A practice piece and a speed square solve most of these before they ruin a panel.
Final Verdict
The best sheet metal brakes for home shops come down to what you bend and how much. The Malco MB48A is my pick overall, because 22 gauge capacity, a 135 degree range, and a reinforced frame handle roofing and ductwork work that lighter folders will not, and its owner history is the longest in this group. The KAKA BDS-6 is the right first purchase for small work, and the KASTFORCE KF5002 is the value answer when you need 18 gauge capacity in 28 inches of width.
Measure your bench, check your deepest box, and buy the machine rated for the material you already have rather than the material you might want next year. That one decision saves more panels than any accessory on the list.
