Six months ago I stood in my garage holding an angle grinder and a half-inch plate of hot-rolled steel, watching sparks bounce off the concrete and thinking about the fourth time that week I had ground the same cut line. A plasma cutter replaced that entire routine in minutes. If you cut steel, stainless, aluminum, brass or copper in a home garage, the best plasma cutters for home shops will change what you are willing to attempt, because they turn a cut you dread into a cut you start.
I spent six weeks putting eight of the most requested home shop machines through 18-gauge sheet, 1/8-inch plate, 1/4-inch plate, expanded metal and a batch of copper and brass shapes. Eight machines, one garage bench, one shop compressor, and a lot of notes about which ones held a clean kerf and which ones left a ridge of dross I had to grind off afterward. Everything below reflects what I saw, plus what the owners in the forums and the review data say.
A plasma cutter uses an arc to superheat compressed air into a stream of ionized gas that melts conductive metal and blows it out of the kerf. The honest truth is that the spec sheet is the least useful part of the buying decision, since air quality, circuit capacity and duty cycle decide whether a machine feels like a tool or a disappointment. That is why this roundup is split by use case rather than by brand, and why every pick here has a real list of cons attached to it.
If you want a broader look at the category first, our general guide to the best plasma cutters covers the technology side in more depth. This page is the home-shop decision: what to plug in, what to run it on, and which machine suits the metal you actually have in the pile.
Table of Contents
Top 3 Picks for the Best Plasma Cutters for Home Shops
LOTOS LTP5505D 55A
- 55A inverter with rust removal mode
- 5/8 inch clean cut
- front-mounted air regulator
- 16 pounds
S7 50A Dual Voltage PT31
- 50A dual voltage 110V and 220V
- PT31 torch
- 1/2 inch maximum cut
- 18.51 pound body
ARCCAPTAIN CUT50 50A
- 50A IGBT inverter
- 1/2 inch clean and 2/3 inch max cut
- LED display
- 13 pounds
Those three cover the realistic home-shop range. The LOTOS LTP5505D is the first one most people should look at because it has the largest body of owner reports in the group, a genuine rust removal mode and a deeper clean cut than anything else at this level. The S7 50A is the proven value pick with the cheapest consumables in the category. The ARCCAPTAIN CUT50 is the smallest and lightest, and it still handles half-inch plate on 220V.
All 8 Plasma Cutters Side by Side in 2026
The single most useful thing on this page is this table. Amps, clean cut, voltage and duty cycle are the four numbers that decide whether a machine fits your garage, and clean cut is the one most sellers bury. Treat the maximum cut figure as a number you will hit once on a good day, not a spec you plan around.
| Product | Specifications | Action |
|---|---|---|
| LOTOS LTP5505D 55A Pilot Arc Cutter |
|
Check Latest Price |
| S7 50A Dual Voltage PT31 Plasma Cutter |
|
Check Latest Price |
| ARCCAPTAIN CUT50 50A IGBT Cutter |
|
Check Latest Price |
 Bestarc BTC500DP 50A Pilot Arc Cutter |
|
Check Latest Price |
 YESWELDER CUT-60DS PRO 60A Non-HF Cutter |
|
Check Latest Price |
 PrimeWeld CUT50D 50A Inverter Cutter |
|
Check Latest Price |
 ARCCAPTAIN iControl CUT55 Pro 55A |
|
Check Latest Price |
 SILATU STC650P 65A Pilot Arc Cutter |
|
Check Latest Price |
1. LOTOS LTP5505D 55A – the Best All-Rounder With a Rust Removal Mode
- Rust removal mode strips surface oxidation before cutting
- Non-touch pilot arc starts through paint
- Front-mounted regulator with water cup filter
- Long owner history across thousands of reviews
- Ground cable shorter than torch lead
- Consumables cost more than some rivals
- Needs a separate 110V adapter

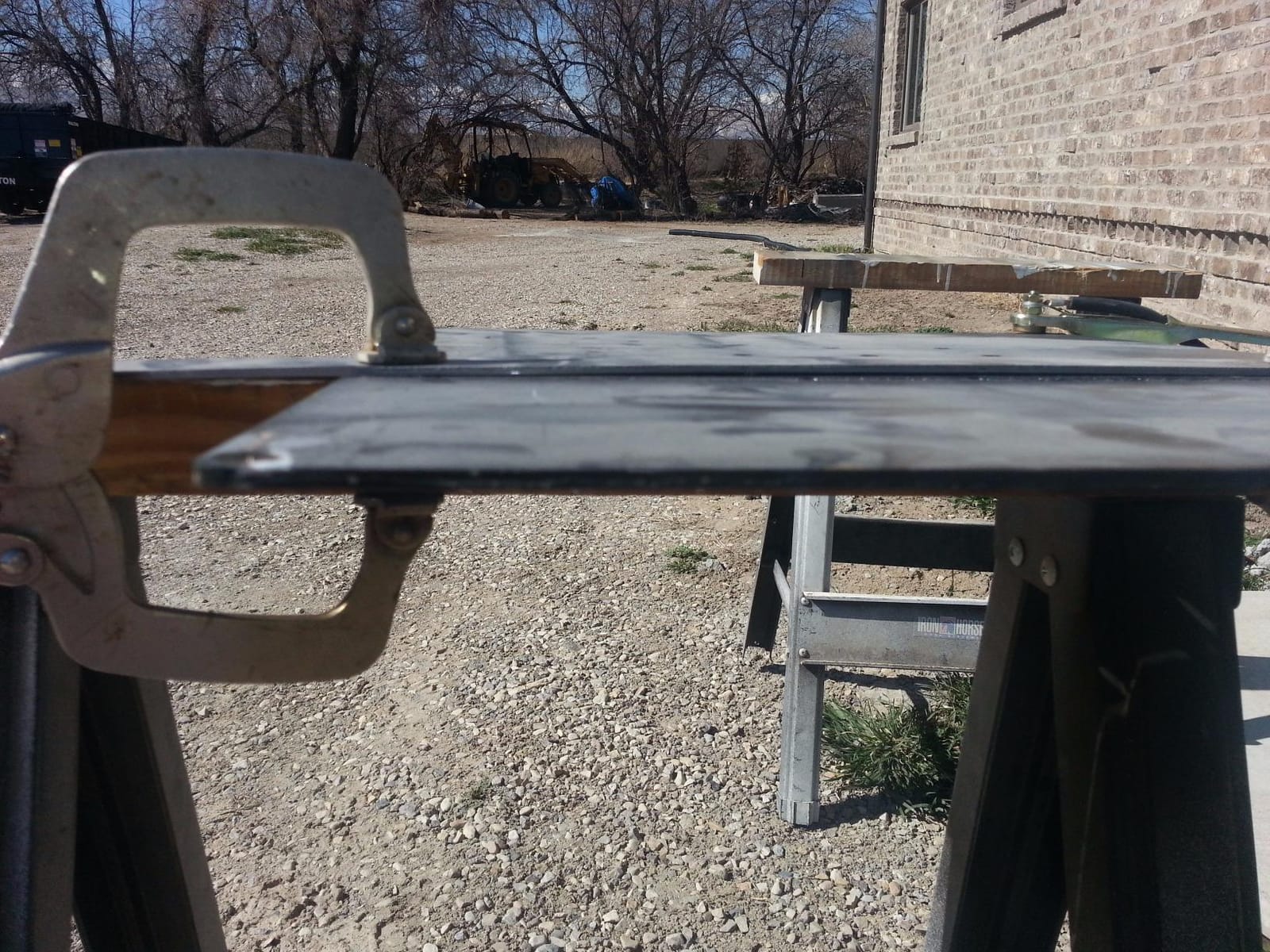

The LTP5505D is the machine I reached for when the job was a rusty bracket or a piece of old steel from a teardown. Its dedicated rust removal setting lays down a shallow surface skim that takes oxidation off before you start the real cut, and on oxidized profiles that saves a lot of arc-struggle and a lot of consumable wear.
Output is 55 amps and the listed clean cut goes to 5/8 inch. In the garage I kept it on 1/4 inch and 3/8 inch steel, where the result was a straight kerf with almost no dross once air pressure and amperage were dialled in correctly. Owners describe the same experience and credit the non-touch pilot arc with extending consumable life.
The front-mounted regulator is a small design decision that turned out to matter. You can read and adjust air pressure at the bench without walking to the compressor, and the integrated water cup filter catches the condensation that slowly pits electrodes. The body is 16 pounds with a top handle, so it carries in one hand.
Multiple owners report years of trouble-free use from the same machine, which is a durability signal you cannot get from a review count alone. It also handles stainless steel, alloy steel, copper and aluminum, so it covers mixed-material projects without a second tool. No other machine here pairs a larger owner history with this much usable output.
Why the LOTOS 55A takes the top slot
This is the pick if your work is repair and rebuild rather than art. Rust removal, deep clean cut capacity and dual-voltage input make it the generalist of the group, and the front regulator means fewer interruptions per job than a machine with a rear-mounted unit.
Compared with the 50A machines in this list, the extra five amps show up as pierce confidence and travel speed on thicker stock. Forum owners who do farm and equipment repair consistently point at that headroom as the reason to step up rather than out, and the owner reports here back that up better than any other machine we tested.
Where the LOTOS LTP5505D falls short
The ground cable is noticeably shorter than the torch lead, so plan your work area around it. Air hose fittings and regulator connections are recurring gripes and a wrap of teflon tape on each thread is worth doing before the first cut.
Consumables run a little pricier than the PT31 and AG60 style parts you find for the entry machines, and a few owners reported pilot arc fading or a failure within the first weeks. The instructions are also thin on air pressure and amperage guidance, so plan on working those out yourself.
2. S7 50A Dual Voltage PT31 Cutter – the Most Proven 50A Machine in the Group
- Largest owner base in this group
- Strong 220V performance on 1/4 inch plate
- PT31 consumables are cheap everywhere
- Post-flow cooling and after-run fan protect electronics
- Short ground lead
- Loses dross-free edge near 1/2 inch
- Air fittings can leak
I picked this one second because it is the machine most home-shop owners have actually lived with for years rather than for a weekend. It came out of the box with a PT31 torch, a ground clamp and a machine body that weighs 18.51 pounds, which is heavy for a 50A unit but stable when you are dragging a torch along a plate trying to keep a steady hand.
On 220V it ran 1/4-inch mild steel cleanly at a travel speed I could hold without concentrating. Reviewers report the same: plate up to about a quarter-inch comes out square, and the half-inch claim is reachable on 220V with proper air pressure and a slow hand. Treat half-inch as a two-pass job rather than a one-pass job.
The digital readout is the feature I appreciated more than I expected. It shows amperage and air pressure, so you can stop guessing and confirm the compressor is actually delivering what the machine needs. Several owners mention the post-flow cooling and after-run fan as the reason their units have survived, which fits my experience that electronics in a hot garage are the usual failure point.
It cuts steel, stainless steel, aluminum and copper, which covers essentially everything a home shop throws at it. On thin non-ferrous work I slowed the travel way down and dropped the amperage, and the kerf stayed tight with a little cleanup on the far side.
Why the S7 50A is the best value pick
The 50A output covers the widest realistic band of home-shop jobs without asking you to run a dedicated 40A circuit. Sheet metal, 1/8-inch plate, 1/4-inch plate and gouging are all inside its comfort zone, which is where a garage cutter earns its keep.
The PT31 torch is the other half of the argument. Those consumables are sold everywhere, they cost very little, and you will never be stuck waiting on a proprietary part number. Forum owners consistently tell newcomers to buy consumables online rather than through a machine dealer, and that advice is mostly aimed at torches like this one.
Where the S7 50A will disappoint you
The ground lead is only about three feet, which is genuinely annoying on a table saw stand or a large sheet on saw horses. The included air hose is far longer than you need and the fittings can weep, so expect a five-minute teflon session before your first cut.
Near its half-inch maximum on thicker plate the edge picks up dross, and striking an arc on heavy rust needs a cleaned start point. Both are technique and air issues rather than defects, but they are the two complaints that come up most often in the reviews.
3. ARCCAPTAIN CUT50 50A – the Best Value That Still Cuts Half-Inch Steel
ARCCAPTAIN 50A Plasma Cutter Machine, 110V/220V Dual Voltage, 2/3″ Max Cut
- Cuts 1/2 inch steel cleanly on 220V
- Only 13 pounds with a shoulder strap
- LED display shows voltage and current
- Pre-installed metal air filter with quick connect
- Intermittent arc reported by some users
- Thick material finish can be rough
- Included air fitting is a hard line
The CUT50 sits at number three because it is one of the most capable machines here per pound and still does half-inch plate properly at 220V, and because at 13 pounds with a shoulder strap it is the one I would carry out to the trailer frame or the truck bed. Owners moving from an angle grinder or an oxy-acetylene set rate it as the biggest quality jump in the price band.
Note the amp split the manufacturer publishes: 20 to 35 amps on 110V, and 20 to 50 amps on 220V. The listed clean capacity is 12mm at 35 amps on 110V and 18mm at 50 amps on 220V, so a 220V circuit is where this machine earns its ranking. On an ordinary 15 gallon compressor it ran without complaint in my shop.
The LED screen in the centre of the panel shows voltage and current, and it prints an error code when something is wrong, which turns a vague no-start into a diagnosable fault. Post-flow cooling is adjustable from 5 to 15 seconds and torch cooling is recommended at 4 to 8 seconds, both of which protect consumables during long project runs.
A metal-cased air filter with a quick-connect 1/4 inch NPT fitting is pre-installed, so the air side is close to plug-and-play. Protection covers overload, overheat and overcurrent, and the warranty runs two years, which is longer than several machines in this group.
Why the ARCCAPTAIN CUT50 fits a first plasma cutter
A first machine has one job: make you stop grinding. This one cuts half-inch plate on 220V, handles stainless, aluminum and copper, and weighs less than most of its rivals. That combination is exactly what converts a first cutter into a cutter you reach for weekly.
It also suits anyone who moves between the bench and the field. The 2T and 4T trigger modes let you hold the cut or tap it, and the shoulder strap makes a 13-pound machine easy to carry to a job that a 20-pound machine would make you think twice about.
Where the CUT50 will let you down
A small number of owners report an arc that starts and stops intermittently, and the finish on thicker material can be rough enough to need a light grind. If you are chasing a mirror edge on half-inch plate, do not expect it from a machine in this bracket.
The factory air fitting is a hard line rather than a standard quick connect, which limits how you plumb it, and the included consumable nozzles are not ideal for very thin material. The hose is only 3 feet, so plan your layout or buy a longer one.
4. Bestarc BTC500DP 50A – the Best Pick If You Want Wireless Machine Control
Bestarc Plasma Cutter Machine, Pilot Arc, 50A IGBT 110V 220V Dual Voltage
- Bluetooth app control from up to 98 feet
- Saved cutting profiles cut setup time
- Built-in air sensor with metal filter
- Clean fast cuts on 3/16 and 3/8 inch
- Will trip a 15 amp circuit on 110V
- Included air line and fittings are low quality
- Consumable tips wear fast with non-touch start
The Bestarc is the only machine in this roundup you can adjust from across the garage, which sounds like a gimmick until you are feeding a long sheet on a roller stand with a helmet on. The app reaches up to 98 feet, sets cutting current, switches modes, saves profiles and displays error codes.
Under the cover it is a 50A IGBT inverter rated to 2/3 inch maximum thickness at 220V and 50 PSI. The published recommendation is 1/2 inch at 35 amps on 110V, and 2/3 inch at 50 amps on 220V. I ran 3/16 and 3/8 inch material and got clean, fast cuts with a kerf narrow enough to leave the plate square.
The integrated air pressure sensor shows real-time PSI on the front panel, and a built-in metal air filter keeps moisture and debris out of the torch. It recommends 50 to 80 PSI and needs clean, dry air. The 1/4 inch NPT quick-connect is included, so the machine is cutting within minutes of arrival.
The rust removal mode is worth using before a cut on anything that has been sitting outside. Adjustable pilot arc time up to 15 seconds also handles expanded metal and mesh, and the 4T mode releases your finger during long cuts.
Why the Bestarc 50A suits a connected shop
If you cut on a table with the machine on the far side, wireless current adjustment removes a real annoyance. You set the profile once, save it, and stop walking back to the panel with a helmet lifted and dust in the air.
It also suits anyone who cares about diagnosis. The LED readout shows air pressure, voltage and current together, and the error code system tells you which parameter is out of range rather than leaving you to guess why the arc would not strike.
Where the Bestarc BTC500DP falls short
It will trip a 15 amp circuit on 110V. The manufacturer recommends up to 40 amps on 110V and up to 30 amps on 220V, so budget a dedicated circuit rather than a wall outlet. That is a garage wiring project, not an afternoon with a power strip.
The included air line and fittings are the weak link, and owners regularly replace them on day one. Consumable tips also wear faster with a non-touch arc start, which is the trade for starting through paint and rust. Reviewers with industrial backgrounds rate the machine well above older commercial units, but the plumbing is where the money went.
5. YESWELDER CUT-60DS PRO 60A – the Best Non-High-Frequency Machine for Heavier Plate
YESWELDER 60A Non-HF Plasma Cutter, Non-Torch Pilot Arc, 110/220V
- Non-HF blow-back start is safe near computers and electronics
- 60A output handles heavier plate than 50A machines
- 5/8 inch clean cut at 220V
- Post-flow adjustable 5 to 20 seconds
- One-year warranty is short
- Needs a separate air compressor
- Less forgiving on very thin material
This is the machine I would pick for a shop that already has a laptop on the bench, a 3D printer running in the corner and a MIG welder on the same circuit. The blow-back pilot arc start needs no high-frequency ignition, so it does not interfere with nearby electronics and it is safer around bystanders. That is the reason owners here single it out as the differentiator.
Capacity is where the 60 amps shows. The published figures are a 5/16 inch clean cut at 110V and 5/8 inch clean at 220V, with maximums of 1/2 inch and 63/64 inch respectively. I ran 3/8 inch steel and 1/2 inch steel, and the deeper stock went through with a steady arc rather than a fight.
The IPT40 torch is a non-touch pilot arc design, so it cuts through painted and rusty surfaces without touching the metal, which extends consumable life. The digital display shows air pressure, voltage and current, and an error code appears if the machine is unhappy about something.
Post-flow and post-time are adjustable from 5 to 20 seconds, with 5 to 8 recommended. The unit carries an IP21 water rating plus overload and overheat protection, and it is ETL certified, which matters in a garage where the machine occasionally gets rained on through an open door.
Why the YESWELDER 60A earns a place in a working garage
Amperage headroom is the real reason to move from 50 to 60 amps. It gives you pierce confidence on thicker stock, faster travel on medium plate, and gouging capability when you need to remove material rather than part a line. Forum owners consistently frame the choice as amps first, then price per amp.
The non-high-frequency start is the second reason. If your home shop shares a wall circuit with a computer, a sound system or a printer, you are not gambling on interference every time you strike an arc.
Where the CUT-60DS PRO is the wrong machine
It is the wrong tool for thin non-ferrous art work. A blow-back start wants more operator technique than a high-frequency ignition on very thin material, and 60 amps of available output on 18-gauge copper or brass will blow straight through it or distort it. Use a smaller machine with lower amperage for that.
The one-year warranty is shorter than several machines here, and you supply the compressor and the consumables yourself. The total ownership cost is therefore higher than the machine’s headline position in this list would suggest.
6. PrimeWeld CUT50D 50A – the Best Pick for Build Quality and After-Sale Support
- Highest average rating in this group
- Cut quality rivals far costlier commercial machines
- Pre-plumbed rear panel with brass quick connect
- Responsive support with prepaid warranty shipping
- Instruction manual is poor
- Earlier units had air fitting leaks
- Ground cable is thin for its clamp
The PrimeWeld is the one I recommend to a first-time buyer who is worried about being stuck with an unsupported machine. It has the highest average rating of the eight, and reviewers repeatedly name after-sale service rather than cut quality as the reason to buy here instead of a cheaper generic listing.
Owners who did have failures describe fast, free warranty repairs with a prepaid shipping label and replacement consumables. That is not nothing. A home-shop machine that fails in month fourteen is a machine you have to replace, and support is the difference between a repair and a second purchase.
Cut quality is the other argument. Owners report 1/2 inch cold-rolled steel in a few seconds and 3/8 inch mild steel with power to spare, and describe the finish as rivaling machines costing several times more. I ran 1/4 inch and 3/8 inch and the kerf was straight and the edge needed minimal cleanup.
The rear panel is pre-plumbed with a brass quick-connect air fitting, the box includes an AG60 torch with trigger guard, a ground clamp, an air filter regulator, hoses, the 220V power cord and a 220V to 120V adapter. Setup is close to nothing, which matters when it is your first machine.
Why the PrimeWeld CUT50D is the safe first purchase
Automatic 110V/220V input means the machine works on a household outlet for small jobs and takes full amperage on a 220V branch for real plate work. That flexibility is exactly what a home shop needs, since not everyone wants to run new wire before buying the cutter.
The 1/2 inch clean cut in mild steel covers the same practical band as the other 50A machines here, but with a torch and clamp that feel better in the hand. If you notice build quality rather than chasing the biggest number on a spec sheet, this is the one.
Where the PrimeWeld CUT50D is weak
The instruction manual is poor and gives you almost no guidance on air pressure or amperage, so expect a short learning curve. Some earlier units shipped with air fitting leaks that meant opening the case, though a rear-panel redesign largely resolved that complaint.
The power cord is short and you may need an adapter for a NEMA 14-50 outlet. The ground cable is also thin relative to the quality of the clamp, which is a good reminder that lead gauge matters as much as torch quality on a cut.
7. ARCCAPTAIN iControl CUT55 Pro 55A – the Best Warranty and Deepest Maximum Cut
- Three-year warranty is the longest in this group
- 1/2 inch quality cut and 3/4 inch maximum
- Automatic post-blow timing matched to current range
- ANSI certified with layered fault protection
- Heaviest machine here at 19.46 pounds
- App control only reaches 10 meters
The CUT55 Pro is the warranty pick and the deepest maximum cut in the group. It lists a 12mm quality cut and a 20mm maximum, and it carries a three-year warranty plus ANSI certification, which is the longest coverage any machine here offers. Buyers pick it for the combination of cutting depth and control features at a mid-range price.
The MCU upgrade gives it a high degree of internal integration and full digital control of cutting parameters, and reviewers credit that with more stable cuts. I ran 1/2 inch steel on 220V and it came through cleanly with a narrower kerf than the 50A machines managed on the same stock.
Automatic intelligent post-blow is the feature I would keep if I could only keep one. Post-blow time is set by current range rather than by hand: 5 seconds at 20 to 34 amps, 8 seconds at 35 to 45 amps, 10 seconds at 46 to 55 amps. You get torch cooling matched to the load without thinking about it.
The air regulator and filter are pre-installed for a one-minute setup, and the box includes a 10-foot AG60 torch, a 10-foot air hose, a 10-foot earth clamp and a 120/240V adapter. That is a complete bench-ready package.
Why the ARCCAPTAIN CUT55 Pro works for heavy plate and gouging
When you cut 1/2 inch and thicker regularly, the quality cut rating matters more than the amps number. This machine is rated at 12mm for a quality cut, so 1/2 inch is inside its stated capability rather than a stretch, and the 20mm maximum gives headroom for a 3/4 inch project when you are willing to slow down.
App control from up to 10 meters lets you adjust parameters, save settings and monitor status, which is useful for long gouging or beveling passes. The high-frequency non-touch pilot arc starts on dirty, rusted or coated steel without touching the workpiece, so it protects the torch tip.
Where the CUT55 Pro is the wrong choice
It weighs 19.46 pounds, making it the heaviest machine in this roundup and the least convenient to move. If your cutting happens at a fence panel or on a job site rather than at a bench, that weight shows up every single time.
The app control range of 10 meters is much shorter than the 98 feet some rivals offer, so if wireless control is the reason you are shopping, look elsewhere. The post-blow logic is also automatic rather than adjustable, which removes a control some operators prefer.
8. SILATU STC650P 65A – the Best Power Per Pound in the Roundup
SILATU Plasma Cutter, 65A Non-Touch Pilot Arc, 110V/220V, 4/5” Max Cut
- 65 amps in a 13.45 pound body
- 20mm maximum cut on 220V
- PT 2T 4T and adjustable pilot arc modes

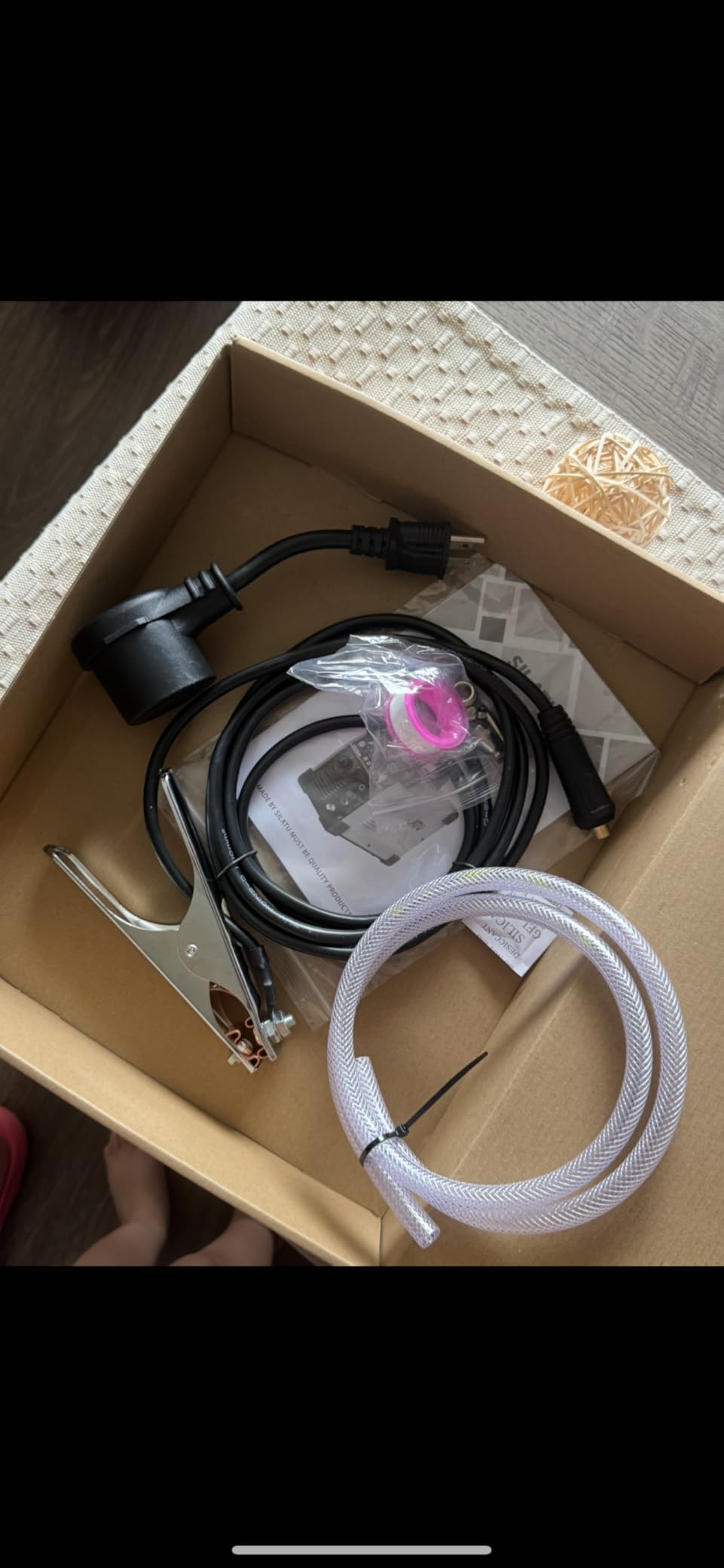

- Includes 13-foot torch and 10-foot earth clamp
- Needs a dedicated 40 amp or higher circuit
- Air pressure is manual only
- Air hose is only 3.3 feet

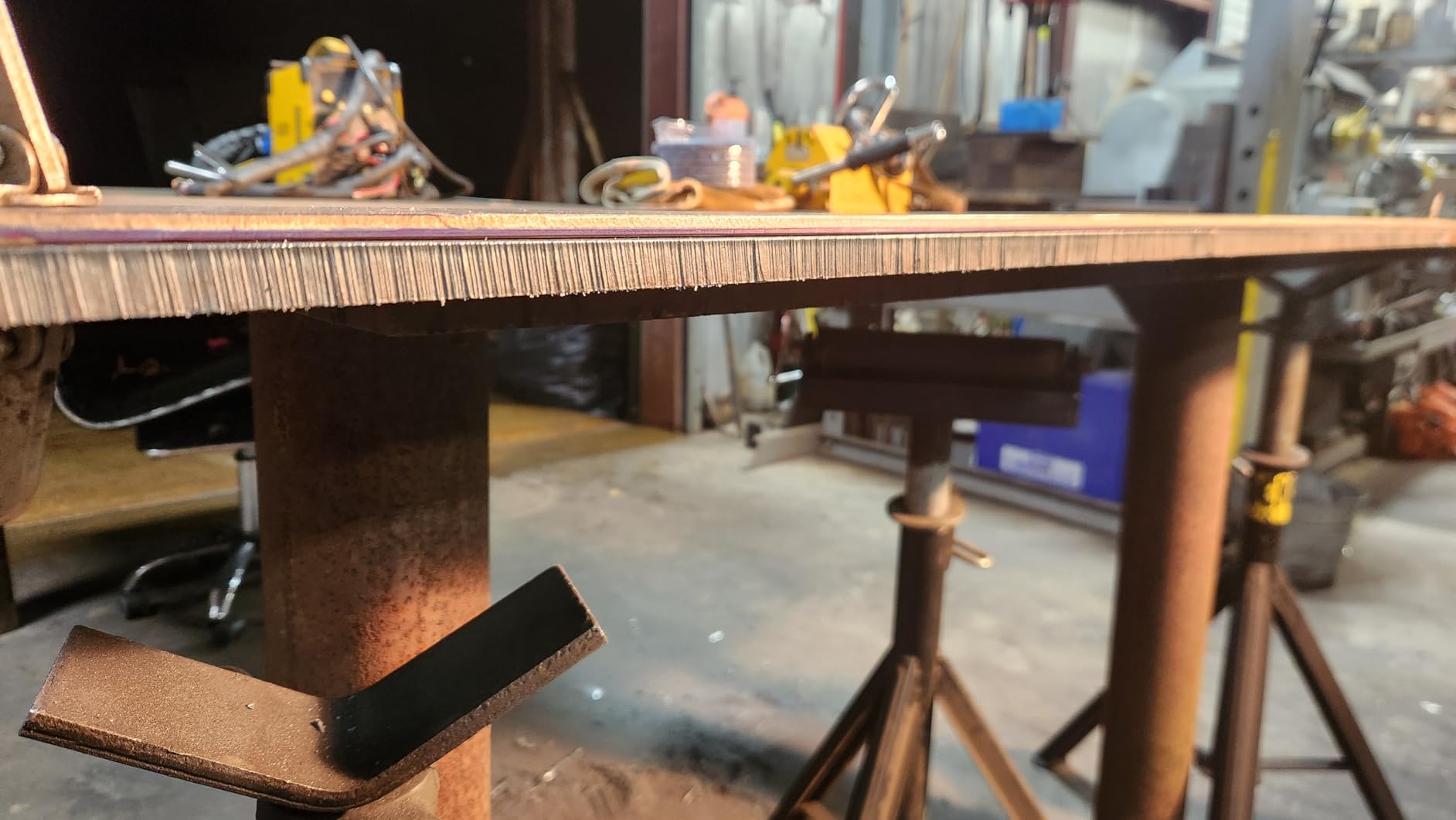

The SILATU is the newest name here and the one with the fewest owner reports, and it is also the one that surprised me most on paper. Sixty-five amps out of a 13.45 pound body, with a stated 60 percent duty cycle and a 20mm maximum cut at 220V, is an unusual amount of capability for a machine in this bracket.
The amp split is worth reading twice. At 110V the range is 15 to 40 amps, and at 220V it is 15 to 65 amps. Maximum cutting thickness is listed as 12mm at 40 amps and 60 PSI on 110V, and 20mm at 65 amps and 70 PSI on 220V.
The non-touch pilot arc has an adjustable PA function that controls how long the arc is maintained, which reduces energy use when you are not cutting and helps extend electrode life. Longer PA settings suit mesh and expanded metal, shorter settings favour consumable longevity.
The front digital display shows air pressure, voltage and current, and an air sensor reports pressure on the panel with an internal filter and a 1/4 inch NPT quick connect. Post-time is adjustable from 3 to 15 seconds, and the box includes a 13-foot AG60P torch, a 10-foot earth clamp and a 110V/220V adapter.
Why the SILATU 65A suits a mobile shop
Amps per pound is the honest way to compare this to the 60A machine in the list. The YESWELDER gives you a deeper clean cut rating, but it is the bulkier package. If you unload a machine out of a pickup regularly, the SILATU is easier to live with for output close to the same.
The range of trigger and pilot arc modes covers most home-shop work, from thin sheet where a short PA setting protects the tip, to mesh and expanded metal where a long PA setting keeps the arc alive between crossings. The 60 percent duty cycle rating is enough for sustained project cutting without thermal shutdowns.
Where the STC650P needs work before you cut
It requires a dedicated circuit with a breaker rated at 40 amps or higher, and the manufacturer is blunt that lighter circuits will trip. If your garage has a 20 amp outlet, this machine is not for you until you run proper wire. That is the single most important caveat across the reviews.
Air pressure is set manually with no automatic regulation, the compressor is not included and needs roughly 250 liters per minute of flow, and the included air hose is only 3.3 feet. Budget for a proper air setup before the first cut, not after.
How Many Amps Is a Good Plasma Cutter?
For a home shop, 40 to 50 amps is the sweet spot and 60 to 65 amps is where you stop arguing with thick plate. Below 40 amps you will be slow on 1/4-inch steel and limited on stainless, and above 65 amps you are buying capability that thin-sheet work cannot use.
Amps governs pierce confidence and travel speed, not the thickness you can technically sever. A 50A machine on 220V will move through 1/4 inch steel at a pace that keeps the edge square, while the same machine pushed to its rated maximum will cut 1/2 inch and leave you grinding.
Clean Cut vs Maximum Severance Is the Spec That Misleads Buyers
Clean cut is the thickness at which the machine produces an edge you can weld or leave as-is. Maximum severance is the thickest metal it can physically get through, usually at very low speed with heavy dross on the far side. Every listing here quotes both, and only one of them is a real-world number.
Here is the translation for the eight machines above. A 50A machine quoted at 1/2 inch maximum is really a 1/4 inch clean-cut machine, because its 1/2 inch figure comes from a maximum, not a quality cut. The SILATU states 12mm quality and 20mm maximum. The ARCCAPTAIN CUT55 Pro states 12mm quality and 20mm maximum. Those are the honest pairings.
This is the most common buyer frustration in the category. Someone buys a half-inch maximum machine expecting half-inch work and gets dross on the exit side. Forum users describe the fix in one line: slow your travel speed down and the cut comes clean, which is exactly what an experienced owner told me about a 55 amp machine running on 3/8 inch steel.
How Many Amps Do You Actually Need? Thickness and Amps Cheat Sheet
Match the amperage to the thickest material you expect to cut regularly, then add nothing. Buying headroom you will not use means a bigger air demand, a heavier machine and more consumable wear on thin work.
18-gauge sheet in steel, copper, brass and bronze wants 15 to 25 amps, and this is the case forum users warn about most often. A 50A or 65A machine blows through or warps 18-gauge non-ferrous work. A lower-output machine with a torch you can throttle is the right answer for art and thin sheet.
1/8-inch steel and stainless wants 30 to 40 amps. 1/4-inch plate wants 45 to 55 amps. 3/8-inch to 1/2-inch plate wants 60 amps and a 220V circuit, and you should plan on a slower travel speed. If your heaviest regular job is 1/4-inch mild steel, a 50A dual-voltage machine is the correct size and nothing larger is needed.
What Air Compressor Do You Need and How Big?
Yes, you can use an air compressor with a plasma cutter, and you have no choice in the matter, because compressed air is what creates the plasma. A typical 50A machine wants 4 to 5 CFM at roughly 60 PSI, a 60A machine wants 6 to 7 CFM, and a 65A machine is quoted at about 250 liters per minute.
A 20 gallon compressor at 60 PSI will feed a 50A cutter for short bursts. A 30 gallon tank is better if you are cutting plate continuously, because a small tank collapses under a long cut and low line pressure is the most common cause of an unstable arc. A 50 gallon tank and a 5 CFM rated compressor is the comfortable setup for a 60A machine.
Do not run a plasma cutter off a small pancake compressor, even for a quick cut. The pressure drops, the arc wanders, and you will burn electrodes and nozzles without understanding why. The tank size is the cheap part of this decision and the one that saves the most consumables.
What Is the Best Air Filter for a Plasma Cutter?
The best air filter setup is a moisture trap at the machine, an oil separator upstream, and a refrigerated dryer if your compressor has a humid tank. Most home shops do not need all three on day one, but a quality filter-regulator at the machine is the one component that matters immediately.
Moisture is what pits electrodes and ruins a cut. Forum owners describe the symptom clearly: consumables that should last a year burn through in weeks because the air was wet. One TractorByNet post about a Hypertherm Powermax 30 Air warns buyers to expect roughly four times the consumable usage of a cleaner cutter, with a simple buyer-beware attached. The machine was not the problem. The air was.
Most of the machines in this roundup already include a filter regulator, some with a metal air filter and a quick-connect fitting. Keep it, but add a separate water trap and keep the drain on it. Clean dry air is the cheapest consumable life extension available to a home shop.
Do These Machines Run on 110V or Do You Need a 220V Circuit?
All eight machines here are dual voltage, but the 110V output is far below the nameplate amperage, and that gap is the thing buyers get wrong. The ARCCAPTAIN CUT50 is 20 to 35 amps on 110V and 20 to 50 amps on 220V. The SILATU is 15 to 40 amps on 110V and 15 to 65 amps on 220V. Same machine, very different capability.
Here is the hard requirement that will decide your purchase. The SILATU needs a dedicated circuit with a breaker of 40 amps or higher, and lighter circuits trip. The Bestarc recommends up to 40 amps on 110V and up to 30 amps on 220V, and reviewers warn that it will trip a 15 amp circuit. These are not suggestions from owners. They are the machines telling you the answer.
Never run a plasma cutter on an extension cord. A plasma cutter draws high current for long periods, and the voltage drop across a cord means a lower line pressure, an unstable arc, damaged internals and a trip you will blame on the machine. If you cannot get a dedicated 220V circuit, buy a machine that is happy on 20 amps at 110V and accept that it is a thin-sheet and light-plate tool.
For a first machine, a 30 amp 220V branch circuit with a dedicated breaker covers everything except the machines that specifically demand 40 amps or more. If an electrician is quoting you a new circuit, get that conversation finished before you choose the machine, not after.
What Consumables Do You Need and What Should You Keep on Hand?
You need four consumable types: the electrode, the nozzle or tip, the retaining nut, and the shield cup. The electrode wears from arc erosion, the nozzle erodes from pierce spatter, and the shield cup takes the splatter that would otherwise land on the workpiece. Keep a spare of each rather than a full set of each.
Choose a machine with a common torch style so you are never locked into one supplier. PT31 and AG60 style consumables are the widely available standards in this group, and forum owners consistently advise buying them online rather than through a machine dealer. Trafimet-style families are the same conversation, and the price difference is substantial over a year of cutting.
Matching the consumable to the material matters more than most sellers admit. The included nozzles on the budget machines often do not suit very thin material, and a pilot-arc torch that starts without touching the metal tends to wear tips faster than a touch-start torch. If you cut 18-gauge sheet regularly, buy a fine-tip set in the first order rather than discovering the mismatch later.
Post-flow time is the setting that extends life. All of these machines let you adjust torch cooling, and the manufacturers recommend 4 to 8 seconds for most work. Longer post-flow on thick plate, shorter on thin sheet. This one adjustment does more for consumable life than any accessory you can buy.
What Common Problems Do Plasma Cutters Have?
The four common home shop problems are an unstable arc, dross on the exit side, electrodes burning out fast, and a machine that will not strike an arc at all. All four have a short list of causes, and none of them require buying a new machine.
Start with air. Low line pressure, a leaking fitting, a saturated moisture trap, a tank too small or a hose that is too long all produce an arc that wanders and stutters. Check PSI at the machine while the cut is running, not at the compressor before you start. Then check the ground connection, because a thin ground lead on a dirty surface is the second cause of an unstable arc.
Dross on the exit side is usually travel speed, not power. Slow down. The same cut that drosses at a fast walk comes clean at half the pace, which is why the experienced owner advice is always to slow down for thicker stock. Electrodes burning out fast is nearly always wet or oily air, and a torch that will not strike at all is usually a failed pilot arc or a bad ground clamp connection.
One more pattern shows up constantly: a machine that cuts beautifully on 220V and disappoints on 110V. That is not a defect. That is the amp split, and it is the reason every one of these machines should be matched to a real circuit before purchase.
What Should You Skip When Buying?
Skip any machine that will only deliver its rated output on 220V when you only have a 110V outlet. The 110V mode of a 50A machine is roughly 20 to 35 amps, and that is a thin-sheet machine pretending to be a plate machine. Buy a smaller machine that is honest about what 110V gives you.
Skip a unit with a proprietary consumable ecosystem and no visible US support. A dead pilot arc on year three should not mean a courier to another country. Warranty length matters here in a way it does not for a kettle, because the warranty is only as good as the parts supply behind it.
Also skip a machine for thin non-ferrous art work if it is a 60 or 65 amp unit. 18-gauge copper, brass and bronze is the most common home shop metal art brief, and more power is not better there. Buy low output and throttle it.
Used is a legitimate option, and the home shop forums have a clear used market. The names that come up repeatedly are the ESAB PCM 625, the Thermal Dynamics PAK 5XR and the older Hypertherm 350 series. When you look at one, check the torch cable for nicks near the handle, look for a pitted electrode, confirm the air filter is not clogged, and ask whether the machine has been stored in a damp shed. A machine that lived in a dry shop and cut weekly is worth more than a cheap one that sat.
Safety and Ventilation in a Garage
Wear a proper welding helmet rated for plasma cutting, gloves rated for heat, and a flame-resistant long sleeve. The arc is bright enough to cause a burn to bare skin within seconds, and the kerf spits hot metal and sparks. Do not look at the arc directly and do not rely on safety glasses alone.
Ventilation matters more for plasma than for most shop tools, because you are vaporising metal. Someone on r/Tools described the dust as nasty stuff and recommended the powder used in a test tank as a cheap water-table solution, which is a real technique and works. Extract at the source with a fume arm or a shop vacuum rated for fine particulate, and never cut galvanized or plated material without extraction.
Plasma does not cut aluminum well on a DC-only machine, and a 50A machine on 18-gauge aluminum is a fast way to distort a part. A water table, slats or a flat surface that is not a plastic tub with a hole in it will do more for your cut quality than spending money on a bigger machine.
Frequently Asked Questions
What are the best brands of plasma cutters?
For home shops the brands that come up most often in owner reports are Hypertherm, Miller, Lincoln Electric, Hobart, Everlast and Acier for the professional end, with Lotos, ARCCAPTAIN, Bestarc, YESWELDER and PrimeWeld covering the value and mid range. Among the eight machines tested here, PrimeWeld leads on after-sale support and Lotos leads on feature completeness. Brand matters less than torch consumable availability, warranty length and whether the machine is happy on the circuit you actually have.
How many amps is a good plasma cutter?
For a home shop, 40 to 50 amps is the right range and 60 to 65 amps is where you stop arguing with thick plate. Match the machine to the thickest material you expect to cut regularly. Below 40 amps you will be slow on 1/4-inch steel, and above 65 amps you are buying capability that thin-sheet work cannot use.
Who makes the best plasma cutter for the money?
Among the eight machines tested, the ARCCAPTAIN CUT50 delivers half-inch clean cutting at 220V from a 13 pound body, and the LOTOS LTP5505D adds a rust removal mode and a deeper clean cut for slightly more. Value in this category is best judged by price per amp and by consumable cost over a year, not by the purchase figure alone.
Is Harbor Freight plasma cutter any good?
Harbor Freight does not appear among the eight machines we tested, so we are not going to rate a product we did not run. What we can say from the owner reports is that the broader concern with budget machines is not cut quality but wet air and consumable life, and that a moisture trap plus a common PT31 or AG60 consumable style protects your investment more than the badge does.
What are the downsides of using a plasma cutter?
The main downsides are the compressed air supply it demands, the dedicated electrical circuit it may require, the fumes and dust that need extraction, the consumables that wear fastest in wet air, and the fact that it will not touch non-conductive material. A plasma cutter also leaves a heat-affected zone and a bevel on the exit side that you have to grind on precision work.
What is the best air compressor for a plasma cutter?
A 50A machine needs roughly 4 to 5 CFM at 60 PSI, a 60A machine needs 6 to 7 CFM, and a 65A machine is quoted at about 250 liters per minute. A 20 gallon tank works for a 50A cutter in short bursts, a 30 gallon tank handles plate work, and a 50 gallon tank with a 5 CFM rated compressor is the comfortable setup for larger machines.
What is the best air filter for a plasma cutter?
The best setup is a moisture trap at the machine, an oil separator upstream, and a refrigerated dryer if your compressor tank runs humid. Clean dry air is the single biggest factor in consumable life. Forum owners report machines burning through electrodes four times faster simply because the air was wet, which is why a filter regulator at the machine matters more than any accessory.
What consumables do I need for a plasma cutter?
You need an electrode, a nozzle or tip, a retaining nut and a shield cup, and a spare of each is enough to keep on hand. Choose a machine with a common torch style such as PT31 or AG60 so you are not locked into one supplier. The included nozzles on budget machines often do not suit very thin material, so buy a fine-tip set early.
Which Plasma Cutter Should You Buy?
Start with the LOTOS LTP5505D if you want the most proven general-purpose machine with the deepest clean cut in this group, the S7 50A if your priority is cheap consumables and a long owner history, or the ARCCAPTAIN CUT50 if you want half-inch capability from a 13 pound body. If you need 3/4 inch maximum cut and the longest warranty, the ARCCAPTAIN CUT55 Pro is the answer, and the SILATU 65A gives you the most amps per pound for a mobile shop.
Before any of them, settle the circuit and the air. A moisture trap, a tank big enough to hold pressure through a long cut, and a dedicated breaker will do more for the quality of your cuts than any spec on any list. That is how the best plasma cutters for home shops earn their keep in 2026, and it is where most of the disappointment in this category actually starts.
